Tension Load Cells
SHOWA 昭和測器高精度荷重元
Tension Load Cells Selection Table
|
Type |
Features and Applications |
Capacity Range |
Nonlinearity(%RO) |
Rated Output(mV/V) |
Compensated Temp. Range (℃) |
|
RTU |
Coaxial beam type, High Accuracy, General Purpose |
10kN,..200MN |
0.03 |
3.0±1% |
－10 to 60 |
|
RTE |
Coaxial beam type, High Accuracy, General Purpose※1 |
2kN,..200KN |
0.05 |
3.0±1% |
－10 to 60 |
|
RTD |
Coaxial beam type, General Purpose |
500N,..20kN |
0.15 |
2.0±1% |
－10 to 60 |
|
RTD-UA |
Coaxial beam type, Water Proof, General Purpose |
500N,..20kN |
0.15 |
2.0±1% |
－10 to 60 |
|
RTB |
Coaxial beam type, Attached Rod-end, General Purpose |
50N,..5KN |
0.2 |
1.5±1% |
－10 to 60 |
|
MRDT |
Ultra-small type, General Purpose |
50N,..2kN |
1 |
1.0±20% |
0 to 60 |
|
DB |
Coaxial beam type, High Accuracy, General Purpose |
200N,..20kN |
0.02 |
3.0±1% |
-10 to 60 |
|
DBS |
Coaxial beam type, High Accuracy, Low Cost, General Purpose |
200N,..50kN |
0.05 |
3.0±1% |
-10 to 60 |
.jpg)
- Items with Marks (※1) are produced only on order placed.
- Tension Load Cells will be supplied with the tension calibration data only. The tension load cells can however be applied to compression measurement purposes by coupling compression jigs with the screws prepared on both surfaces of tension load cells. Requirements for the tension load cells with the compression calibration data can be coped with on optional order placed.
型號
- RTU Coaxial beam type, high accuracy, general purpose
- RTE Coaxial beam type, high accuracy, general purpose
- RTD Coaxial beam type, general purpose
- RTD-UA Coaxial beam type, water proof, general purpose
- RTB Coaxial beam type, attached rod-end, general purpose
- MRDT Ultra-small type, general purpose
- DB Coaxial beam type, high accuracy, general purpose
- DBS Coaxial beam type, high accuracy, low cost, general purpose
RTU
外型尺寸
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
Weight |
|
RTU-10KN |
10kN |
115 |
85 |
18 |
93 |
12 |
60 |
66.5 |
M12*1.75,14 deep |
2.9kg |
|
RTU-20KN |
20kN |
148.5 |
85 |
35 |
119.5 |
16 |
75.5 |
66.5 |
M24*2,32 deep |
3.4kg |
|
RTU-50KN |
50kN |
148.5 |
85 |
35 |
119.5 |
16 |
75.5 |
66.5 |
M24*2,32 deep |
3.4kg |
|
RTU-100KN |
100kN |
213 |
127 |
48 |
160 |
30 |
110 |
95.5 |
M36*2,45 deep |
7.4kg |
|
RTU-200KN |
200kN |
290 |
166 |
70 |
210 |
40 |
140 |
118 |
M48*3,60 deep |
18kg |
規格
|
Safe Overload |
150％RC |
|
Rated Output |
3mV/V±1％ |
|
Nonlinearity |
0.03%RO |
|
Hysteresis |
0.03%RO |
|
Repeatability |
0.02%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.002%RO/℃ |
|
Temp.Effect on Output |
0.002%/℃ |
|
Cable |
Φ9.6mm-6wire shielded cable, length: 5m |
RTE
外型尺寸
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
Weight |
|
RTE-2KN |
2kN |
115 |
85 |
18 |
93 |
12 |
60 |
66.5 |
M12*1.75,14 deep |
2.8kg |
|
RTE-5KN |
5kN |
115 |
85 |
18 |
93 |
12 |
60 |
66.5 |
M12*1.75,14 deep |
2.8kg |
|
RTE-10KN |
10kN |
115 |
85 |
18 |
93 |
12 |
60 |
66.5 |
M12*1.75,14 deep |
2.8kg |
|
RTE-20KN |
20kN |
148.5 |
85 |
35 |
119.5 |
16 |
75.5 |
66.5 |
M24*2,32 deep |
3.3kg |
|
RTE-50KN |
50kN |
148.5 |
85 |
35 |
119.5 |
16 |
75.5 |
66.5 |
M24*2,32 deep |
3.3kg |
|
RTE-100KN |
100kN |
213 |
127 |
48 |
160 |
30 |
110 |
95.5 |
M36*2,45 deep |
7.2kg |
|
RTE-200KN |
200kN |
290 |
166 |
70 |
210 |
40 |
140 |
118 |
M48*3,60 deep |
18kg |
規格
|
Safe Overload |
150％RC |
|
Rated Output |
3mV/V±1％ |
|
Nonlinearity |
0.05%RO |
|
Hysteresis |
0.05%RO |
|
Repeatability |
0.03%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.005%/℃ |
|
Cable |
Φ8mm-4wire shielded cable, length: 5m |

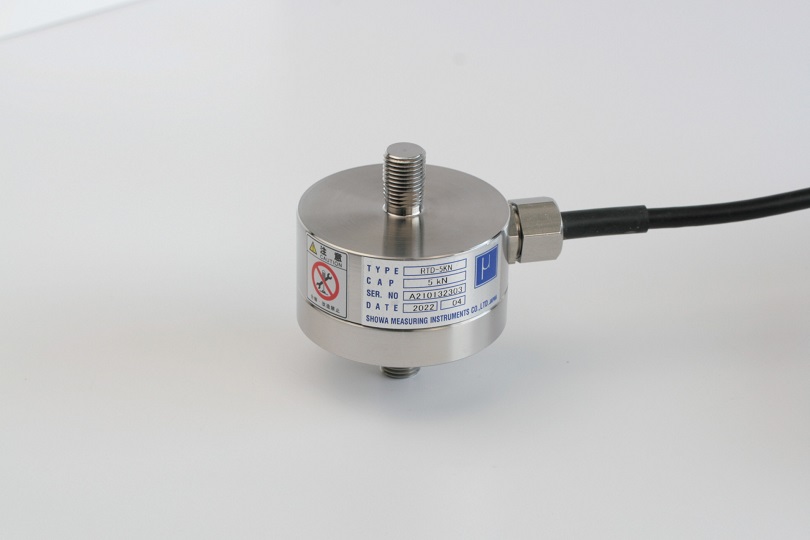

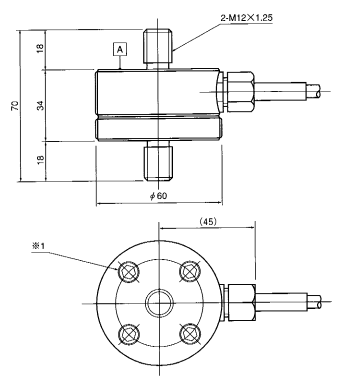

RTD
外型尺寸
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Natural frequency |
Weight |
|
RTD-500N |
500N |
3.6kHz |
1.0kg |
|
RTD-1KN |
1kN |
5.4kHz |
1.0kg |
|
RTD-2KN |
2kN |
7.8kHz |
1.0kg |
|
RTD-5KN |
5kN |
13kHz |
1.0kg |
|
RTD-10KN |
10kN |
16kHz |
1.1kg |
|
RTD-20KN |
20kN |
23kHz |
1.1kg |
規格
|
Safe Overload |
150%RC(500N～10kN) |
|
120%RC(20kN) |
|
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.15%RO |
|
Hysteresis |
0.15%RO |
|
Repeatability |
0.1%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
420Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.01%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 5m |

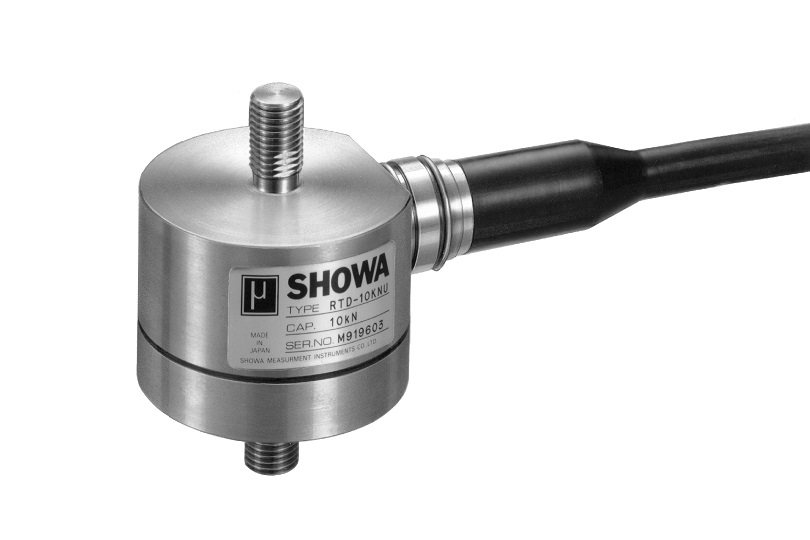

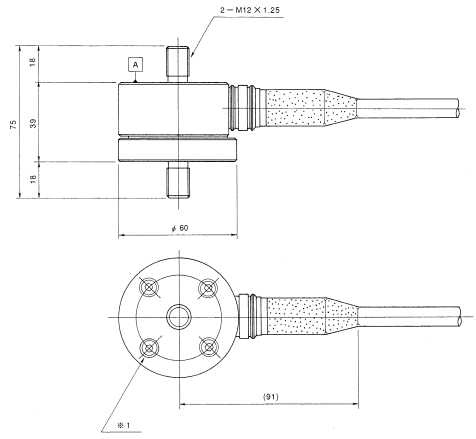

RTD-UA
外型尺寸
Model and Capacity / Dimension / etc. (unit : mm)
|
Model |
Capacity |
Natural frequency |
Weight |
|
RTD-500NUA |
500N |
3.6kHz |
0.8kg |
|
RTD-1KNUA |
1kN |
5.4kHz |
0.8kg |
|
RTD-2KNUA |
2kN |
7.8kHz |
0.8kg |
|
RTD-5KNUA |
5kN |
13kHz |
0.8kg |
|
RTD-10KNUA |
10kN |
16kHz |
0.9kg |
|
RTD-20KNUA |
20kN |
23kHz |
0.9kg |
規格
|
Safe Overload |
150%RC(500N～10kN) |
|
120%RC(20kN) |
|
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.15%RO |
|
Hysteresis |
0.15%RO |
|
Repeatability |
0.1%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
420Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.01%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Cable |
Φ8.5mm-4wire shielded cable, length: 5m |

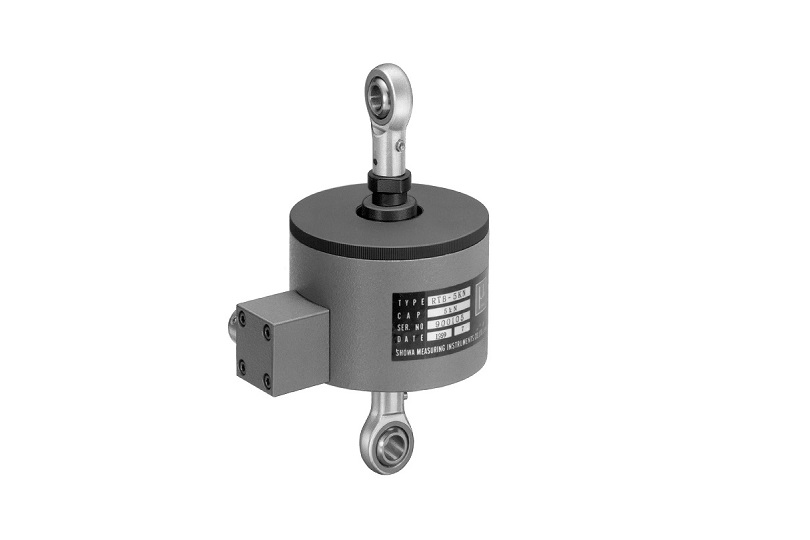

RTB

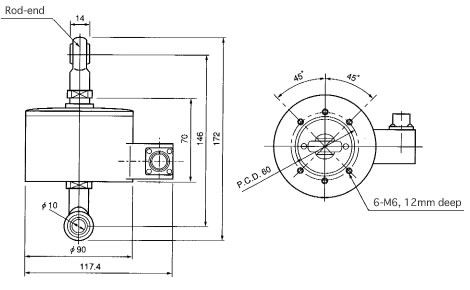

外型尺寸
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Natural frequency |
Weight |
|
RTB-50N |
50N |
0.1kHz |
2.3kg |
|
RTB-100N |
100N |
0.2kHz |
2.3kg |
|
RTB-200N |
200N |
0.3kHz |
2.3kg |
|
RTB-500N |
500N |
0.4kHz |
2.3kg |
|
RTB-1KN |
1kN |
0.6kHz |
2.3kg |
|
RTB-2KN |
2kN |
0.8kHz |
2.5kg |
|
RTB-5KN |
5kN |
1.5kHz |
2.5kg |
規格
|
Safe Overload |
150%RC |
|
Rated Output |
1.5mV/V±1％ |
|
Nonlinearity |
0.15%RO |
|
Hysteresis |
0.15%RO |
|
Repeatability |
0.1%RO |
|
Excitation Voltage |
10V (or less) |
|
Safe Excitation Voltage |
15V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.01%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Connector(on body) |
Receptacle / PRC03-21A10-7F |
|
Attached cable |
L-A-5 |

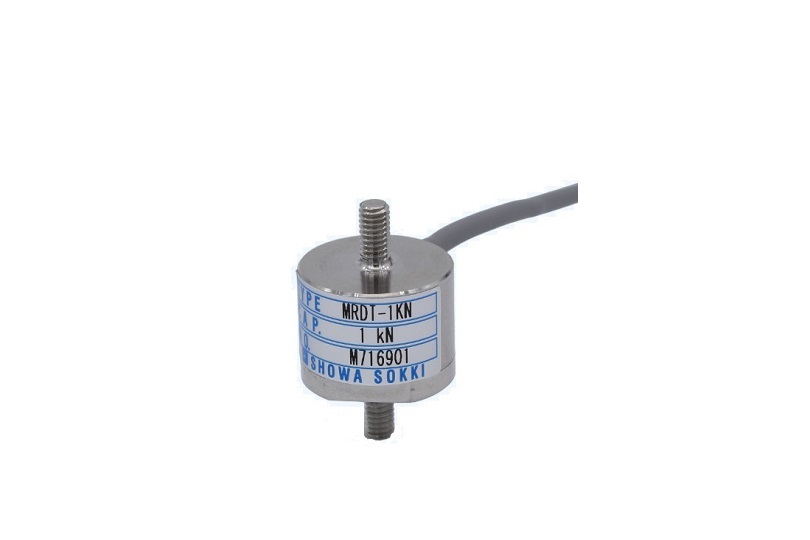

MRDT
外型尺寸
- The surface "H" should be free from any mechanical contacts with other objects, in other words, the surface "H" should have a gap to the extent of 0.5 to 1 mm from another object if any.
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
Natural frequency |
Weight |
|
MRDT-50N |
50N |
24 |
15 |
10 |
7 |
M3*0.5 |
2.0 |
2.4 |
17kHz |
11g |
|
MRDT-100N |
100N |
31 |
20 |
15 |
8 |
M4*0.7 |
25 |
3 |
21kHz |
30g |
|
MRDT-200N |
200N |
31 |
20 |
15 |
8 |
M4*0.7 |
25 |
3 |
35kHz |
30g |
|
MRDT-500N |
500N |
31 |
20 |
15 |
8 |
M4*0.7 |
25 |
3 |
21kHz |
30g |
|
MRDT-1KN |
1kN |
31 |
20 |
15 |
8 |
M4*0.7 |
25 |
3 |
25kHz |
30g |
|
MRDT-2KN |
2kN |
41 |
28 |
17 |
12 |
M6*1 |
33 |
3 |
41kHz |
74g |
規格
|
Safe Overload |
120%RC |
|
Rated Output |
1mV/V±20％ |
|
Nonlinearity |
1%RO |
|
Hysteresis |
1%RO |
|
Repeatability |
0.5%RO |
|
Excitation Voltage |
4V (or less) |
|
Safe Excitation Voltage |
6V |
|
Input Resistance |
390Ω |
|
Output Resistance |
390Ω |
|
Compensated Temp.Range |
0 to 60℃ |
|
Safe Temp.Range |
－10 to 60℃ |
|
Temp.Effect on Zero |
0.2%RO/℃ |
|
Temp.Effect on Output |
0.1%/℃ |
|
Cable |
Φ2mm-4wire shielded cable, length: 3ｍ（10N to 50N） |
|
Φ2.4mm-4wire shielded cable, length: 3ｍ（100N to 2kN） |

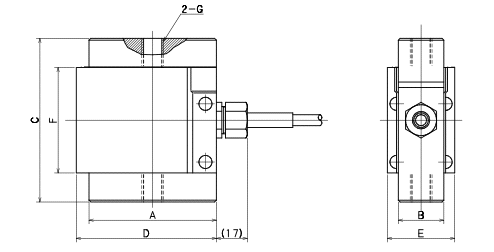

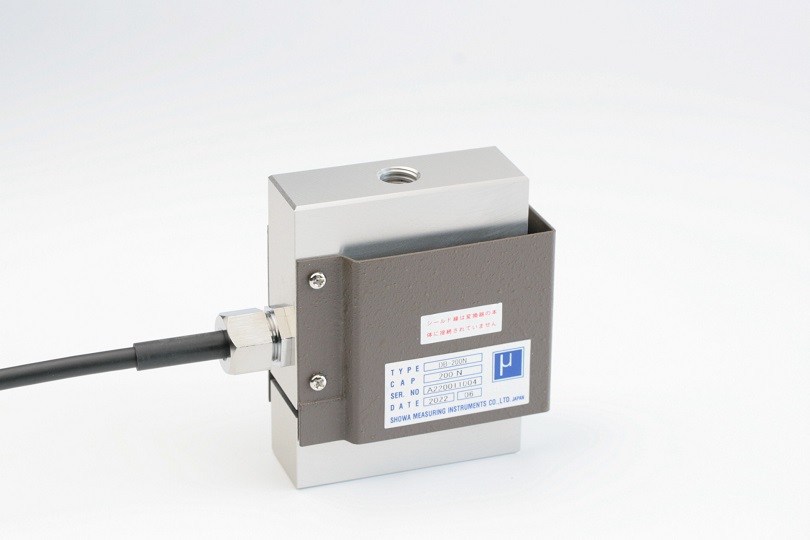

DB
外型尺寸
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
Natural frequency |
Weight |
|
DB-200N |
200N |
70 |
25 |
90 |
77 |
37 |
58 |
M12*1.75,18 deep |
0.39kHz |
0.4kg |
|
DB-500N |
500N |
70 |
25 |
90 |
77 |
37 |
58 |
M12*1.75,18 deep |
0.37kHz |
0.4kg |
|
DB-1KN |
1kN |
70 |
25 |
90 |
77 |
37 |
58 |
M12*1.75,18 deep |
0.49kHz |
0.4kg |
|
DB-2KN |
2kN |
70 |
25 |
90 |
77 |
37 |
58 |
M12*1.75,18 deep |
0.91kHz |
0.4kg |
|
DB-5KN |
5kN |
70 |
25 |
90 |
77 |
37 |
58 |
M12*1.75,18 deep |
1.5kHz |
1.0kg |
|
DB-10KN |
10kN |
80 |
30 |
108 |
87 |
42 |
71 |
M16*2,20 deep |
1.9kHz |
1.6kg |
|
DB-20KN |
20kN |
80 |
30 |
108 |
87 |
42 |
71 |
M16*2,20 deep |
3.3kHz |
1.6kg |
規格
|
Safe Overload |
150%RC |
|
Rated Output |
3mV/V±1％ |
|
Nonlinearity |
0.02%RO |
|
Hysteresis |
0.02%RO |
|
Repeatability |
0.01%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
-10 to 60℃ |
|
Safe Temp.Range |
-30 to 80℃ |
|
Temp.Effect on Zero |
0.002%RO/℃ |
|
Temp.Effect on Output |
0.002%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 5m |

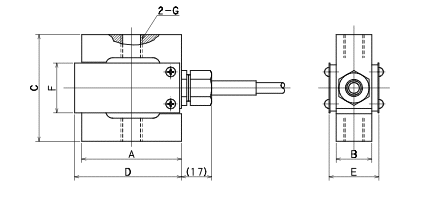

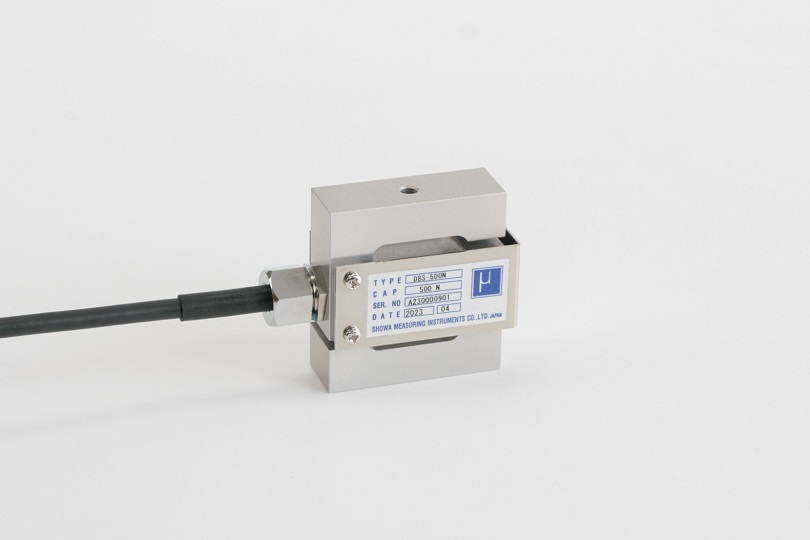

DBS
外型尺寸
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
Natural frequency |
Weight |
|
DBS-200N |
200N |
56 |
20 |
60 |
60 |
28 |
28 |
M6*1,12 deep |
0.6kHz |
0.3kg |
|
DBS-500N |
500N |
56 |
20 |
60 |
60 |
28 |
28 |
M6*1,12 deep |
1.2kHz |
0.3kg |
|
DBS-1KN |
1kN |
56 |
20 |
60 |
60 |
28 |
28 |
M6*1,12 deep |
1.0kHz |
0.3kg |
|
DBS-2KN |
2kN |
56 |
20 |
70 |
60 |
28 |
28 |
M12*1.75,16 deep |
1.5kHz |
0.35kg |
|
DBS-5KN |
5kN |
56 |
20 |
70 |
60 |
28 |
28 |
M12*1.75,16 deep |
2.7kHz |
0.5kg |
|
DBS-10KN |
10kN |
56 |
20 |
70 |
60 |
28 |
28 |
M12*1.75,16 deep |
2.3kHz |
0.5kg |
|
DBS-20KN |
20kN |
70 |
25 |
90 |
74 |
33 |
34 |
M16*2,20 deep |
2.2kHz |
1.6kg |
|
DBS-50KN |
50kN |
100 |
38 |
115 |
104 |
46 |
52 |
M24*2,24 deep |
2.0kHz |
2.8kg |
規格
|
Safe Overload |
150%RC |
|
Rated Output |
3mV/V±1％ |
|
Nonlinearity |
0.05%RO |
|
Hysteresis |
0.05%RO |
|
Repeatability |
0.03%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
-10 to 60℃ |
|
Safe Temp.Range |
-30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.005%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 5m |
其他詳細內容可以下載右方產品規格，或預約安排拜訪，由巨克富科技專人詳細為您解說及產品示範。
© 2019 Chief SI INC. - Design By Armlet
