Compression Load Cells

Compression Load Cells

SHOWA 昭和測器高精度荷重元

Compression Load Cells Selection Table

 Type

Features and Applications

Capacity Range

Nonlinearity(%RO)

Rated Output(mV/V)

Compensated Temp. Range (℃)

SHOWA-RCU-A

RCU-A

Coaxial beam type, High Precision, General Purpose

10kN,..200kN

0.03

3.0±1%

－10 to 60

SHOWA-RC

RC

Column type, Spherical mounting plate, General Purpose

10kN,..5MN

0.2

1.5±1%

－10 to 60

SHOWA-RCB

RCB

Coaxial beam type, General Purpose

50N,..5kN

0.15

1.5±1%

－10 to 60

SHOWA-RCD

RCD

Coaxial beam type, General Purpose

500N,..200kN

0.15

2.0±1%

－10 to 60

SHOWA-RCD-UA

RCD-UA

Coaxial beam type, Water Proof, General Purpose

500N,..200kN

0.15

2.0±1%

－10 to 60

SHOWA-MRD

MRD

Ultra-small type, General Purpose

5kN,10kN

0.5

1.0±20%

0 to 60

SHOWA-MRD-C

MRD-C

Ultra-small type, General Purpose

10N,..2kN

0.3

1.0±20%

0 to 60

SHOWA-MRD-H

MRD-H

 High-temperature, small, general-purpose 100N,..10kN 1 1.0±20% 20 to 150

SHOWA-MRU

MRU

Ultra-small type, General Purpose

200N,..1kN

2

1.0±20%

0 to 60

SHOWA-MRU-H

MRU-H

 High-temperature type, Ultra-compact, General Purpose 200N,..1kN 2 1.0±20% 20 to 150

SHOWA-MRH

MRH

 Ultra-miniature and general-purpose 5N,..100N 0.5 0.5~1.0±25% 0 to 60

SHOWA-MR

MR

Small type, General Purpose

5N,..100N

1

1.0±20%

20 to 60

SHOWA-HCS

HCS

Small & Washer type, measurement of axial power of bolts, General Purpose※1

25kN,..100kN

3

1.5 to 1.8±20%

－10 to 60

SHOWA-PHC

PHC

Center Hole type, General Purpose※1

5kN,..500kN

0.5

1.0±1%

－10 to 70

SHOWA-HCW

HCW

Washer type, Rolling mill & Forging press machine※1

1MN,..5MN

1

1.0±1%

－10 to 60

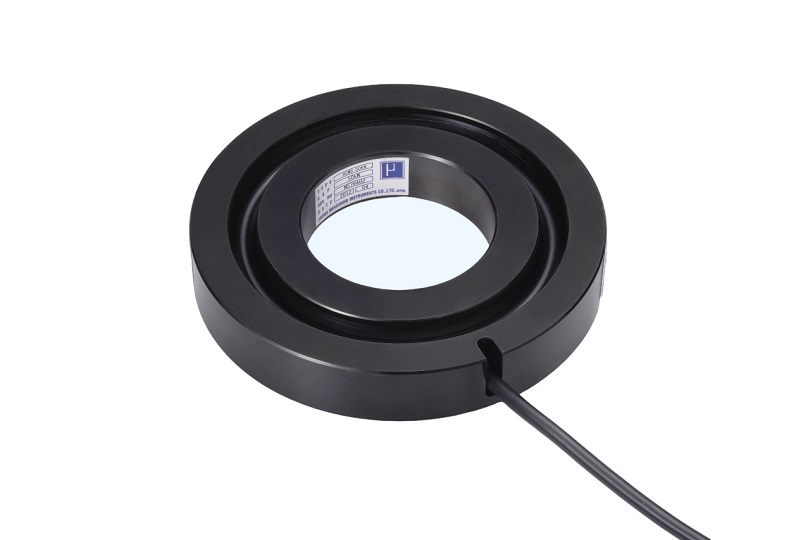

SHOWA-HCWB

HCWB

Low cost, Washer type, General Purpose※1

30kN,..500kN

1

1.0±1%

－10 to 60

  • Items with Marks (※1) are produced only on order placed.

型號

  • RCU-A Coaxial beam type, high accuracy, general purpose
  • RC Column type, spherical mounting plate, general purpose
  • RCB Coaxial beam type, general Purpose
  • RCD Coaxial beam type, general purpose

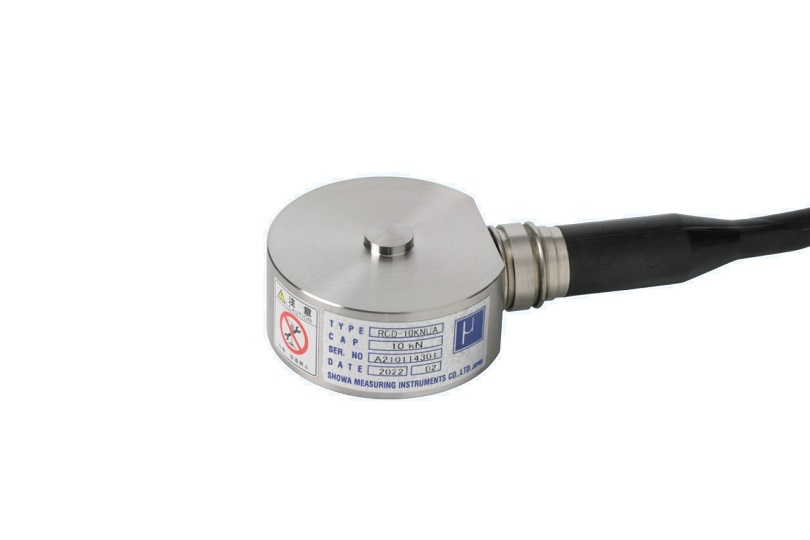

  • RCD-UA Coaxial beam type, waterproof, general purpose
  • MRD Ultra-small type, general purpose
  • MRD-C Ultra-small type, general Purpose

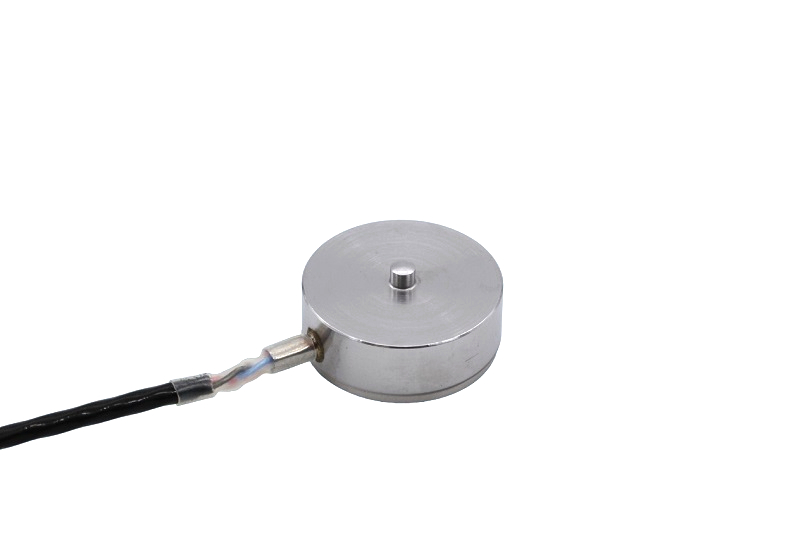

  • MRD-H High-temperature, small, general-purpose

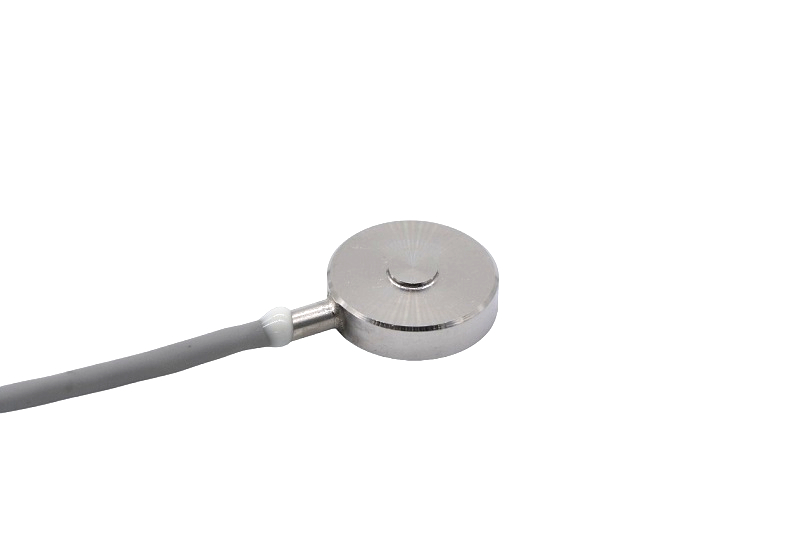

  • MRU Ultra-small type, general purpose

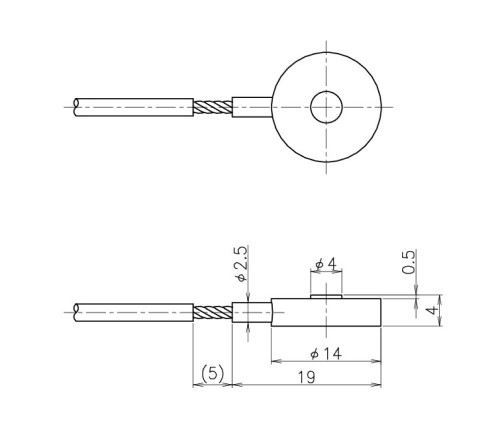

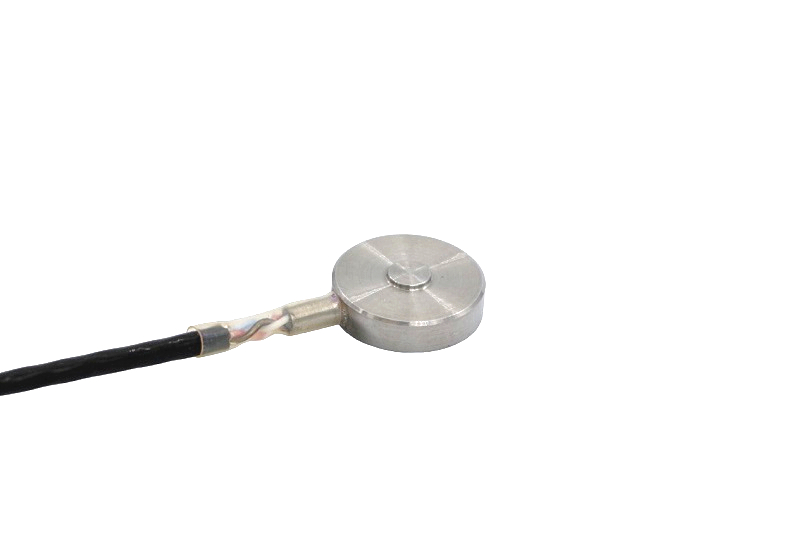

  • MRU-H High-temperature type, ultra-compact, general purpose

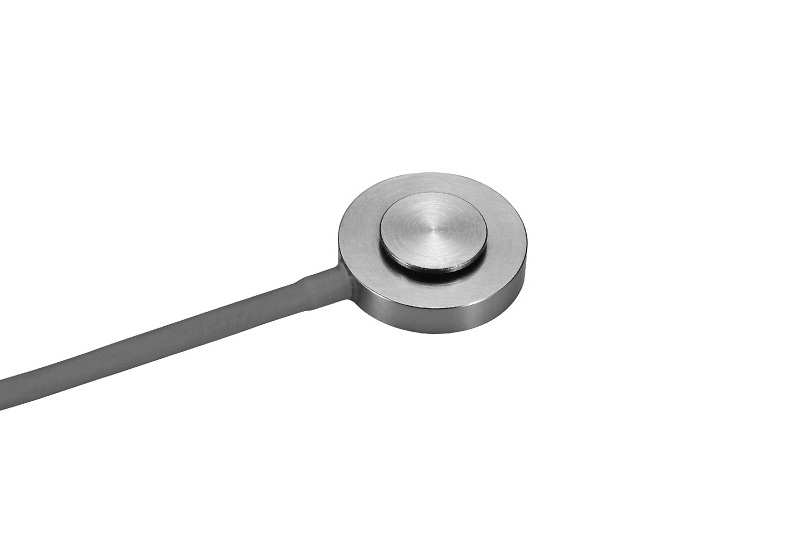

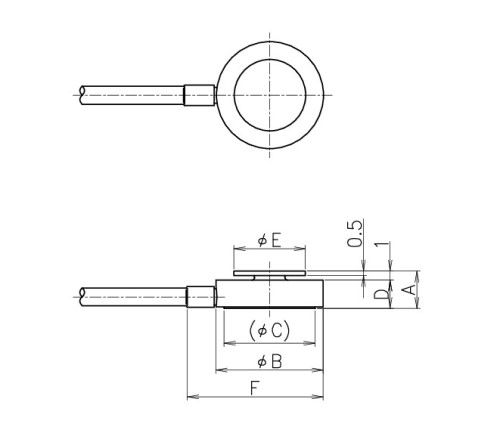

  • MRH Ultra-miniature and general-purpose

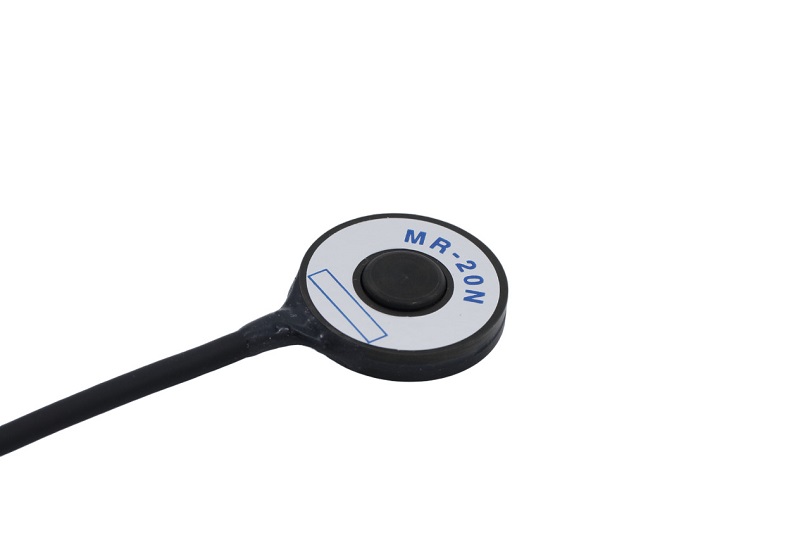

  • MR Small type, general purpose

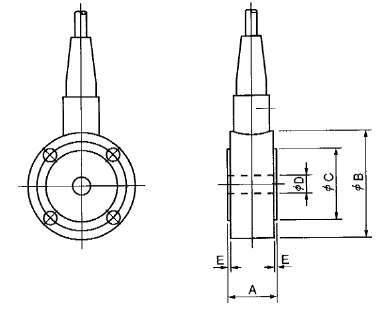

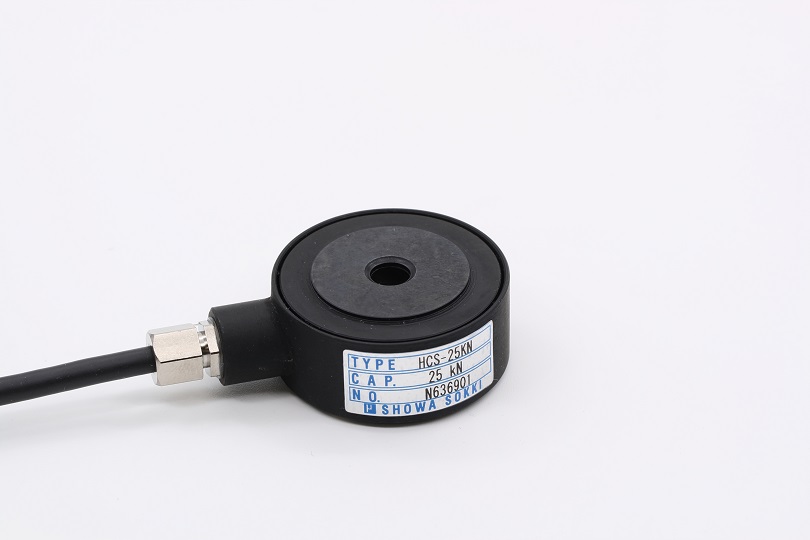

  • HCS Small & washer type, measurement of axial power of bolts, general purpose

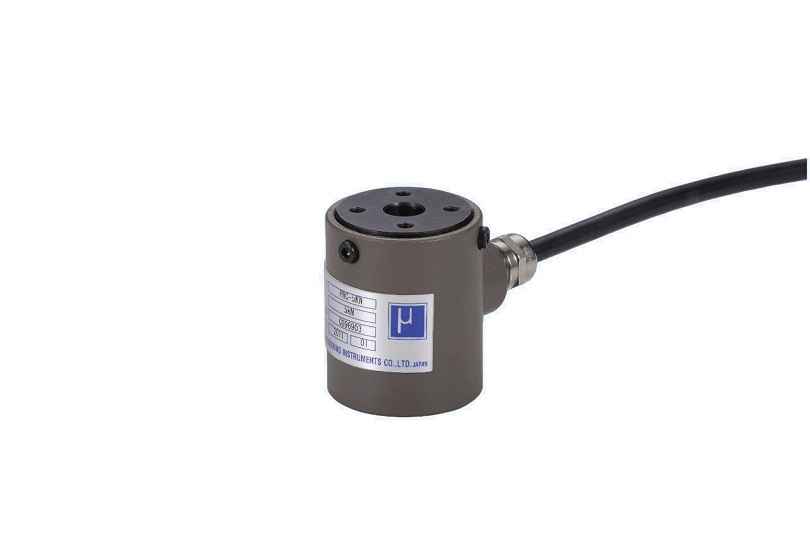

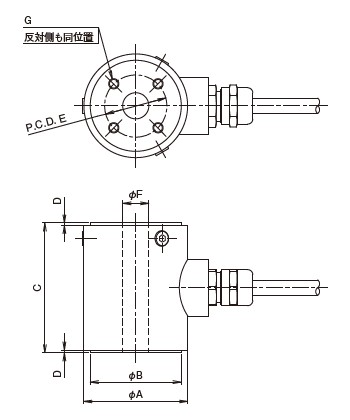

  • PHC Center hole type, general purpose

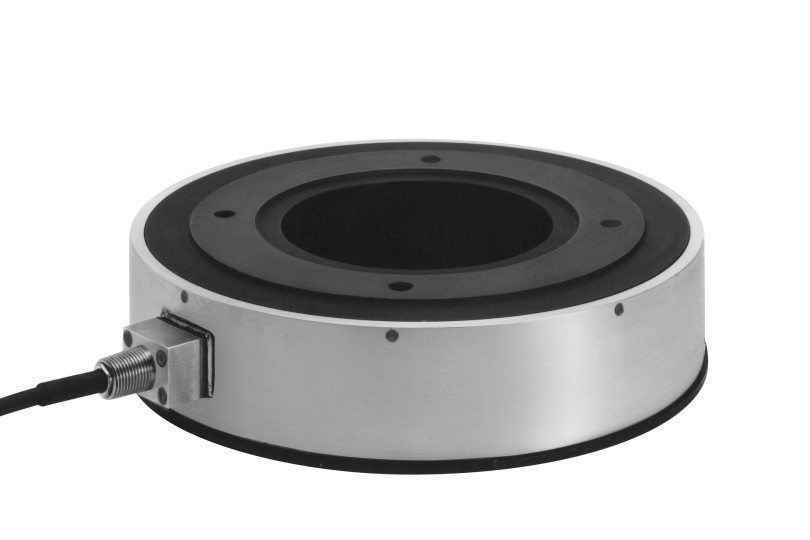

  • HCW Washer type, rolling mill & forging press machine

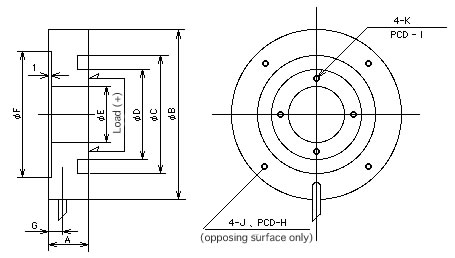

  • HCWB Low cost, washer type, general purpose

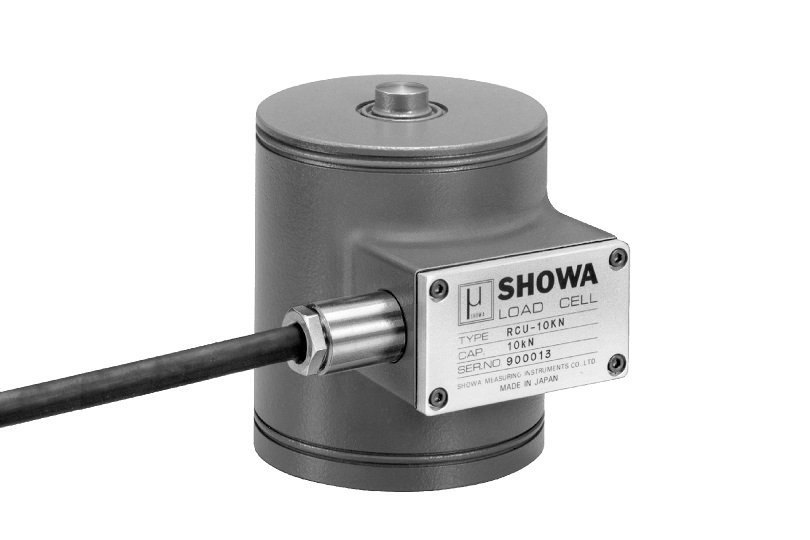

RCU-A

外型尺寸

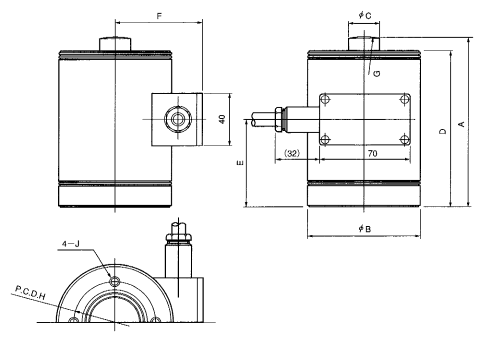

SHOWA_RCU-A Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

H

J

Natural frequency

Weight

RCU-10KNA

10kN

110

88

16

102

55

69

SR70

60

M6,10 deep

3.0kHz

3.0kg

RCU-20KNA

20kN

130

88

24

120

67

69

SR100

60

M6,10 deep

2.3kHz

4.2kg

RCU-50KNA

50kN

130

88

24

120

67

69

SR100

60

M6,10 deep

2.6kHz

4.2kg

RCU-100KNA

100kN

190

127

28

180

90

95

SR100

80

M8,15 deep

2.1kHz

11kg

RCU-200KNA

200kN

280

166

33

268

135

117

SR100

90

M8,15 deep

1.7kHz

27kg

規格

Safe Overload

150％R.C.

Rated Output

3mV/V±1％

Nonlinearity

0.03%R.O.

Hysteresis

0.03%R.O.

Repeatability

0.02%R.O.

Excitation Voltage

12V (or less)

Safe Excitation Voltage

20V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

－10 to 60℃

Safe Temp.Range

－30 to 80℃

Temp.Effect on Zero

0.002%R.O./℃

Temp.Effect on Output

0.002%/℃

Cable

Φ9.6mm-6wire shielded cable, length: 5m

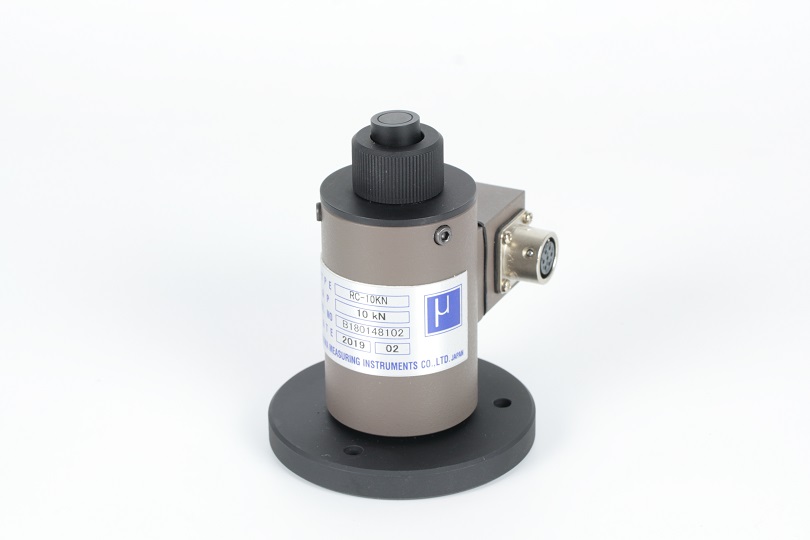

RC

外型尺寸

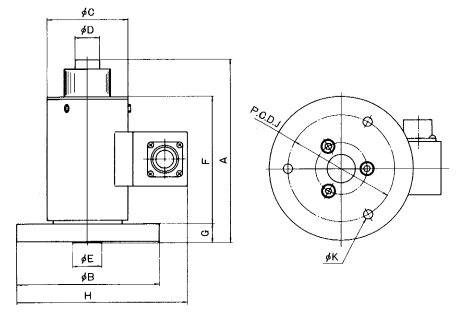

SHOWA_RC Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

H

J

K

Natural frequency

Weight

RC-10KN

10kN

102

80

45

14

18

71

10.5

94.5

60

3- Φ5.5

1.3kHz

1.4kg

RC-20KN

20kN

102

80

45

14

18

71

10.5

94.5

60

3- Φ5.5

5.4kHz

1.4kg

RC-50KN

50kN

110

80

40

20

15

95

10.5

93

65

4- Φ6.5

9.0kHz

1.6kg

RC-100KN

100kN

120

100

50

30

21

105

10.5

108

80

4- Φ8.5

8.3kHz

2.0kg

RC-200KN

200kN

150

120

66

40

30

134

11

126

100

4- Φ8.5

8.1kHz

3.2kg

RC-500KN

500kN

210

150

98

60

48

185

20

157

125

4- Φ10.5

4.8kHz

13kg

RC-1MN

1MN

276

250

143

100

68

245

21

225

190

4- Φ13.0

3.7kHz

30kg

RC-2MN

2MN

331

280

170

130

95

296

25

255

220

4- Φ13.0

3.7kHz

46kg

RC-5MN

5MN

430

380

242

200

150

383

37

348

320

4- Φ15.5

2.9kHz

122kg

規格

Safe Overload

150％R.C.

Rated Output

1.5mV/V±1％

Nonlinearity

0.2%R.O.

Hysteresis

0.2%R.O.

Repeatability

0.1%R.O.

Excitation Voltage

12V (or less)

Safe Excitation Voltage

20V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

－10 to 60℃

Safe Temp.Range

－30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.01%/℃

Connector(on body)

Receptacle / PRC03-21A10-7F

Attached cable

L-A-5

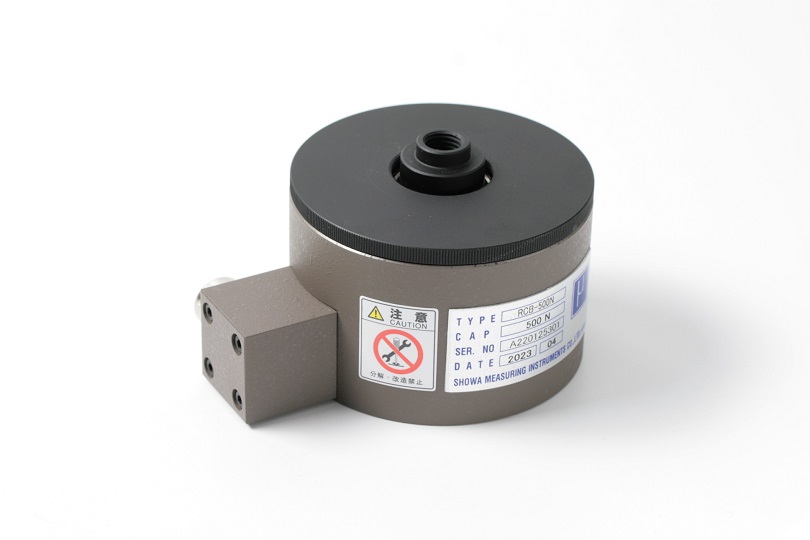

RCB

外型尺寸

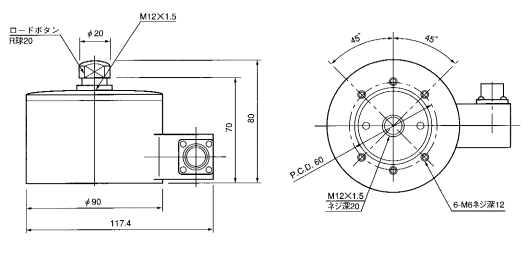

SHOWA_RCB Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

Natural frequency

Weight

RCB-50N

50N

0.3kHz

2.0kg

RCB-100N

100N

0.6kHz

2.1kg

RCB-200N

200N

0.9kHz

2.1kg

RCB-500N

500N

1.3kHz

2.1kg

RCB-1KN

1kN

1.9kHz

2.1kg

RCB-2KN

2kN

2.5kHz

2.3kg

RCB-5KN

5kN

4.7kHz

2.3kg

規格

Safe Overload

150％R.C.

Rated Output

1.5mV/V±1％

Nonlinearity

0.15%R.O.

Hysteresis

0.15%R.O.

Repeatability

0.1%R.O.

Excitation Voltage

10V (or less)

Safe Excitation Voltage

15V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

－10 to 60℃

Safe Temp.Range

－30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.01%/℃
Attached connector Receptacle / PRC03-21A10-7F
Attached cable L-A-5

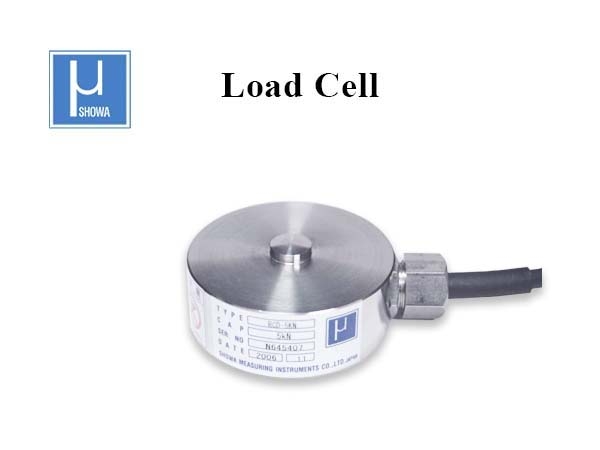

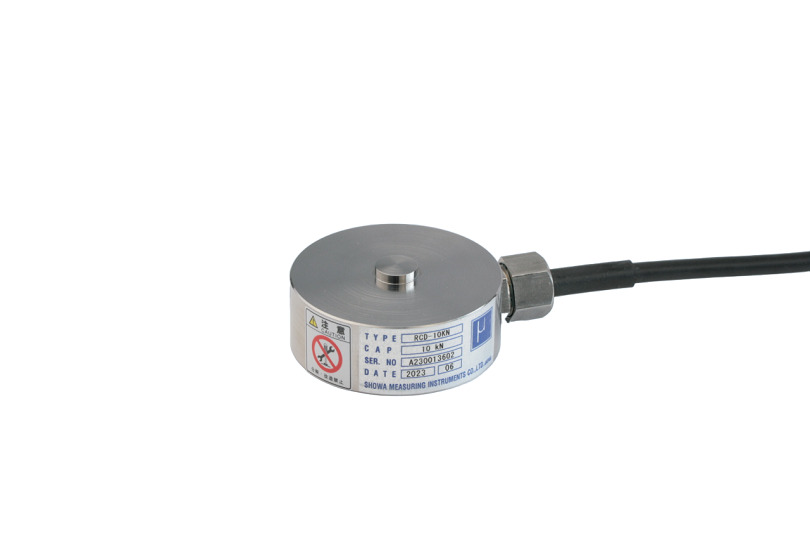

RCD

外型尺寸

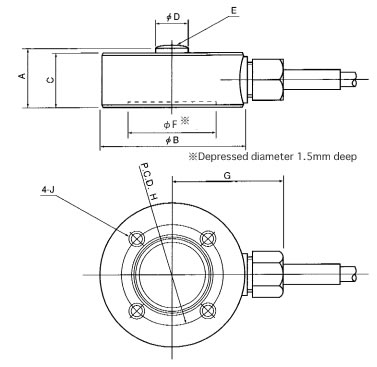

SHOWA_RCD Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

H

J

Natural frequency

Weight

RCD-500N

500N

25

60

22

12

SR50

36

45

42

M5,6 deep

3.6kHz

0.7kg

RCD-1KN

1kN

25

60

22

12

SR50

36

45

42

M5,6 deep

5.4kHz

0.7kg

RCD-2KN

2kN

25

60

22

12

SR50

36

45

42

M5,6 deep

7.8kHz

0.7kg

RCD-5KN

5kN

25

60

22

12

SR50

36

45

42

M5,6 deep

13kHz

0.7kg

RCD-10KN

10kN

25

60

22

12

SR50

36

45

42

M5,6 deep

16kHz

0.8kg

RCD-20KN

20kN

25

60

22

12

SR50

36

45

42

M5,6 deep

23kHz

0.8kg

RCD-50KN

50kN

40

100

35

24

SR70

65

80

80

M8,15 deep

7.7kHz

1.8kg

RCD-100KN

100kN

40

100

35

24

SR70

65

80

80

M8,15 deep

11kHz

1.8kg

RCD-200KN

200kN

45

120

40

33

SR100

73

90

90

M8,15 deep

5kHz

3.1kg

規格

Safe Overload

150％R.C.

Rated Output

2mV/V±1％

Nonlinearity

0.15%R.O.(500N～20kN)

0.10%R.O.(50kN～200kN)

Hysteresis

0.15%R.O.

Repeatability

0.1%R.O.

Excitation Voltage

12V (or less)

Safe Excitation Voltage

20V

Input Resistance

425Ω

Output Resistance

350Ω

Compensated Temp.Range

－10 to 60℃

Safe Temp.Range

－30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.01%/℃

Cable

Φ6mm-4wire shielded cable, length : 5m(500N to 20kN)

Φ8mm-4wire shielded cable, length: 5m(50kN to 200kN
RCD-UA

外型尺寸

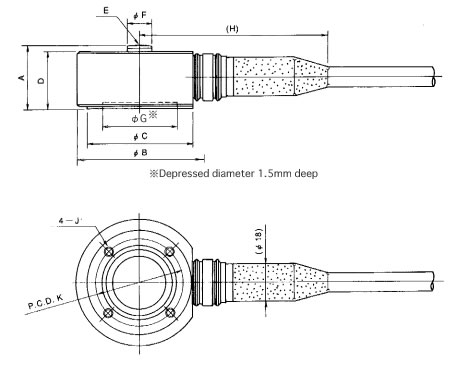

SHOWA_RCD-UA Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

H

J

K

Natural frequency

Weight

RCD-500NUA

500N

30

60

50

27

SR50

12

36

88

M5,6 deep

42

3.6kHz

0.5kg

RCD-1KNUA

1kN

30

60

50

27

SR50

12

36

88

M5,6 deep

42

5.4kHz

0.5kg

RCD-2KNUA

2kN

30

60

50

27

SR50

12

36

88

M5,6 deep

42

7.8kHz

0.5kg

RCD-5KNUA

5kN

30

60

50

27

SR50

12

36

88

M5,6 deep

42

13kHz

0.5kg

RCD-10KNUA

10kN

30

60

50

27

SR50

12

36

88

M5,6 deep

42

16kHz

0.5kg

RCD-20KNUA

20kN

30

60

50

27

SR50

12

36

88

M5,6 deep

42

23kHz

0.6kg

RCD-50KNUA

50kN

40

98

88

35

SR70

24

65

98

M6,12 deep

76

7.7kHz

1.6kg

RCD-100KNUA

100kN

40

98

88

35

SR70

24

65

98

M6,12 deep

76

11kHz

1.6kg

RCD-200KNUA

200kN

45

116

106

40

SR100

33

73

107

M8,15 deep

90

5kHz

2.9kg

規格

Safe Overload

150％R.C.

Rated Output

2mV/V±1％

Nonlinearity

0.15%R.O.(500N～20kN)

0.10%R.O.(50kN～200kN)

Hysteresis

0.15%R.O.

Repeatability

0.1%R.O.

Excitation Voltage

12V (or less)

Safe Excitation Voltage

20V

Input Resistance

425Ω

Output Resistance

350Ω

Compensated Temp.Range

－10 to 60℃

Safe Temp.Range

－30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.01%/℃

Cable

Φ8.5mm-4wire shielded cable, length: 5m
MRD

外型尺寸

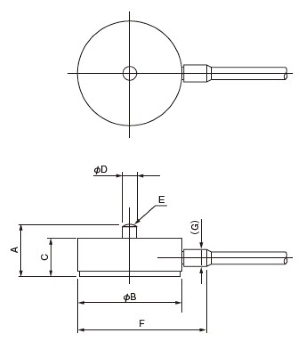

SHOWA_MRD Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

Natural frequency

Weight

MRD-5KN

5kN

13.5

25

11

6

SR15

30

3

92kHz

12g

MRD-10KN

10kN

13.5

25

11

6

SR15

30

3

140kHz

12g

規格

Safe Overload

150％R.C.

Rated Output

1mV/V±20％

Nonlinearity

0.5%R.O.

Hysteresis

 0.5%R.O.

Repeatability

 0.3%R.O.

Excitation Voltage

4V (or less)

Safe Excitation Voltage

6V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

0 to 60℃

Safe Temp.Range

－10 to 60℃

Temp.Effect on Zero

0.2%R.O./℃

Temp.Effect on Output

0.1%/℃

Cable

Φ2.8mm-4wire shielded cable, length: 3ｍ

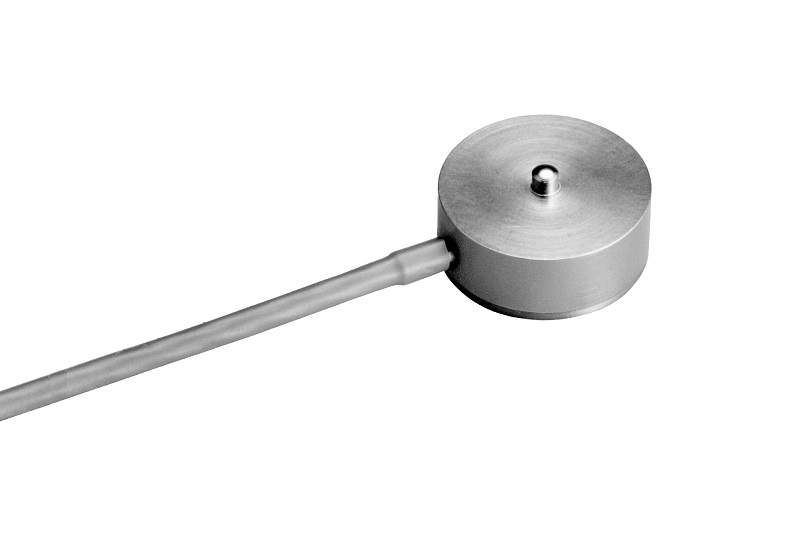

MRD-C

外型尺寸

SHOWA_MRD-C Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

Natural frequency

Weight

MRD-10NC

10N

4

12

3.3

1.8

SR2

17

2.3

16kHz

2.8g

MRD-20NC

20N

4

12

3.3

1.8

SR2

17

2.3

22kHz

2.8g

MRD-50NC

50N

4

12

3.3

1.8

SR2

17

2.3

33kHz

2.81g

MRD-100NC

100N

9.5

20

7.5

2.5

SR4

25

3

21kHz

5.2g

MRD-200NC

200N

9.5

20

7.5

2.5

SR4

25

3

28kHz

5.2g

MRD-500NC

500N

9.5

20

7.5

2.5

SR4

25

3

41kHz

5.2g

MRD-1KNC

1kN

9.5

20

7.5

2.5

SR4

25

3

59kHz

5.2g

MRD-2KNC

2kN

9.5

20

7.5

2.5

SR4

25

3

85kHz

5.2g

MRD-5KN

5kN

13.5

25

11

6

SR15

30

3

92kHz

12g

MRD-10KN

10kN

13.5

25

11

6

SR15

30

3

140kHz

12g

規格

Safe Overload

150％R.C.

Rated Output

1mV/V±20％

Nonlinearity

0.3%R.O. (10N~2KN)
0.5%R.O. (5KN, 10KN)

Hysteresis

0.3%R.O. (10N~2KN)
0.5%R.O. (5KN, 10KN)

Repeatability

0.2%R.O. (10N~2KN)
0.3%R.O. (5KN, 10KN)

Excitation Voltage

4V (or less)

Safe Excitation Voltage

6V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

0 to 60℃

Safe Temp.Range

－10 to 60℃

Temp.Effect on Zero

0.2%R.O./℃

Temp.Effect on Output

0.1%/℃

Cable

Φ2mm-4wire shielded cable, length: 3ｍ(10N to 50N)

Φ2.8mm-4wire shielded cable, length: 3ｍ(100N to 10kN)
MRD-H

外型尺寸

SHOWA_MRD-H Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

Natural frequency

Weight

MRD-100NH

100N

9.5

20

7.5

2.5

SR4

25

21kHz

5.2g

MRD-200NH

200N

9.5

20

7.5

2.5

SR4

25

28kHz

5.2g

MRD-500NH

500N

9.5

20

7.5

2.5

SR4

25

41kHz

5.2g

MRD-1KNH

1kN

9.5

20

7.5

2.5

SR4

25

59kHz

5.2g

MRD-2KNH

2kN

9.5

20

7.5

2.5

SR4

25

85kHz

5.2g

MRD-5KNH

5kN

13.5

25

11

6

SR15

30

92kHz

12g

MRD-10KNH

10kN

13.5

25

11

6

SR15

30

140kHz

12g

規格

Safe Overload

120％R.C.

Rated Output

1mV/V±20％

Nonlinearity

1%R.O.

Hysteresis

1%R.O.

Repeatability

0.5%R.O.

Excitation Voltage

4V (or less)

Safe Excitation Voltage

6V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

20 to 150℃

Safe Temp.Range

0 to 160℃

Temp.Effect on Zero

0.2%R.O./℃

Temp.Effect on Output

0.1%/℃

Cable

Φ2.2mm-4-conductor shielded cable 3 m, bare end
MRU

外型尺寸

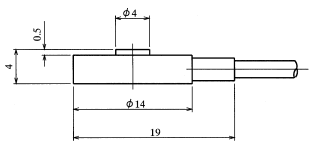

SHOWA_MRU Appearance Dimensions

Model and Capacity / etc. (unit: mm)

Model

Capacity

Natural frequency

Weight

MRU-200N

200N

47kHz

3g

MRU-500N

500N

75kHz

3g

MRU-1KN

1kN

110kHz

3g

規格

Safe Overload

120％R.C.

Rated Output

1mV/V±20％

Nonlinearity

2%R.O.

Hysteresis

2%R.O.

Repeatability

1%R.O.

Excitation Voltage

2V (or less)

Safe Excitation Voltage

3V

Input Resistance

120Ω

Output Resistance

120Ω

Compensated Temp.Range

0 to 60℃

Safe Temp.Range

－10 to 60℃

Temp.Effect on Zero

0.2%R.O./℃

Temp.Effect on Output

0.03%/℃

Cable

Φ2mm-4wire shielded cable, length: 2ｍ
MRU-H

外型尺寸

SHOWA_MRU-H Appearance Dimensions

Model and Capacity / etc. (unit: mm)

Model

Capacity

Natural frequency

Weight

MRU-200NH

200N

47kHz

3g

MRU-500NH

500N

75kHz

3g

MRU-1KNH

1kN

110kHz

3g

規格

Safe Overload

120％R.C.

Rated Output

1mV/V±20％

Nonlinearity

2%R.O.

Hysteresis

2%R.O.

Repeatability

1%R.O.

Excitation Voltage

2V (or less)

Safe Excitation Voltage

3V

Input Resistance

120Ω

Output Resistance

120Ω

Compensated Temp.Range

20 to 150℃

Safe Temp.Range

0 to 160℃

Temp.Effect on Zero

0.2%R.O./℃

Temp.Effect on Output

0.1%/℃

Cable

Φ2.2 mm – 4-conductor shielded cable 2 m, bare end
MRH

外型尺寸

SHOWA_MRH Appearance Dimensions

Model and Capacity / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

Natural frequency

Weight

MRH-5N

5N

3.4

12

10

2.4

8

9.5

6.8kHz

1.7g

MRH-10N

10N

3.4

12

10

2.4

8

9.5

6.8kHz

1.7g

MRH-20N

20N

3.4

12

10

2.4

8

9.5

10kHz

1.7g

MRH-50N

50N

4.2

12

10

3.2

8

9.5

20kHz

2.2g

MRH-100N

100N

4.2

14

12

3.2

8

10.5

29kHz

3.3g

規格

Safe Overload

150％R.C.

Rated Output

0.5 mV/V±25 % (5 N)
1 mV/V±25 % (10 N ~ 100N)

Nonlinearity

0.5%R.O.

Hysteresis

0.5%R.O.

Repeatability

0.3%R.O.

Excitation Voltage

4V (or less)

Safe Excitation Voltage

6V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

0 to 60℃

Safe Temp.Range

－10 to 60℃

Temp.Effect on Zero

0.2%R.O./℃

Temp.Effect on Output

0.05%/℃

Cable

Φ2 mm – 4-conductor shielded cable 3 m, bare end
MR

外型尺寸

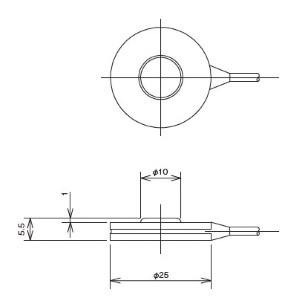

SHOWA_MR Appearance Dimensions

Model and Capacity / etc. (unit: mm)

Model

Capacity

Natural frequency

Weight

MR-5N

5N

1.6kHz

10g

MR-10N

10N

2.5kHz

10g

MR-20N

20N

4.1kHz

10g

MR-50N

50N

6.6kHz

10g

MR-100N

100N

9.5kHz

10g

規格

Safe Overload

120％R.C.

Rated Output

1mV/V±20％

Nonlinearity

1%R.O.

Hysteresis

1%R.O.

Repeatability

0.5%R.O.

Excitation Voltage

2V (or less)

Safe Excitation Voltage

3V

Input Resistance

120Ω

Output Resistance

120Ω

Compensated Temp.Range

20 to 60℃

Safe Temp.Range

0 to 60℃

Temp.Effect on Zero

0.03%R.O./℃

Temp.Effect on Output

0.03%/℃

Cable

Φ3mm-4wire shielded cable, length: 2ｍ
HCS

外型尺寸

SHOWA_HCS Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

Natural frequency

Weight

HCS-25KN

25kN

16

36

24

6.1

0.5

1.3kHz

65g

HCS-50KN

50kN

16

36

24

8.1

0.5

1.8kHz

70g

HCS-70KN

70kN

16

36

24

10.1

0.5

2.0kHz

75g

HCS-100KN

100kN

16

36

24

12.1

0.5

2.3kHz

75g

規格

Safe Overload

150％R.C.

Rated Output

1.5mV/V±20%(25kN～70kN)

1.8mV/V±20%(100kN)

Nonlinearity

3%R.O.

Hysteresis

3%R.O.

Repeatability

2%R.O.

Excitation Voltage

10V (or less)

Safe Excitation Voltage

15V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

-10 to 60℃

Safe Temp.Range

-30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.03%/℃

Cable

Φ4mm-4wire shielded cable, length: 5m

Attached connector

PRC03-12A10-7M
PHC

外型尺寸

SHOWA_PHC Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

Natural frequency

Weight

PHC-5KN

5kN

40

35

50

1

24

10

4-M4,8 deep

8.7kHz

0.3kg

PHC-10KN

10kN

62

55

70

2

44

18

4-M5,8 deep

5.4kHz

1.0kg

PHC-20KN

20kN

62

55

70

2

44

18

4-M5,8 deep

7.5kHz

1.0kg

PHC-30KN

30kN

62

55

70

2

44

18

4-M5,8 deep

9.2kHz

1.0kg

PHC-50KN

50kN

62

55

70

2

44

18

4-M5,8 deep

11kHz

1.0kg

PHC-100KN

100kN

62

55

80

2

44

18

4-M5,8 deep

12kHz

1.3kg

PHC-200KN*

200kN

88

80

100

2

60

20

4-M5,12 deep

9.6kHz

2.9kg

PHC-300KN*

300kN

100

90

120

2

70

20

-4-M5,15 deep

8.5kHz

4.6kg

PHC-500KN*

500kN

134

120

150

2

90

30

-4-M10,16 deep

6.6kHz

11kg

REMARKS:
* Dimensions of the intersection in the in-low portion for the mounting are ΦFH8 and ΦBh7 on both top and bottom surfaces. Note however that an effective size of the ΦFH8 is 5 mm.
* The weight given in the list does not include the weight of the cable.

規格

Safe Overload

120％R.C.

Rated Output

1mV/V±1%

Nonlinearity

0.5%R.O.

Hysteresis

0.5%R.O.

Repeatability

0.3%R.O.

Excitation Voltage

12V (or less)

Safe Excitation Voltage

20V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

-10 to 70℃

Safe Temp.Range

-30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.03%/℃

Cable

Φ6mm-4wire shielded cable, length: 3ｍ
HCW

外型尺寸

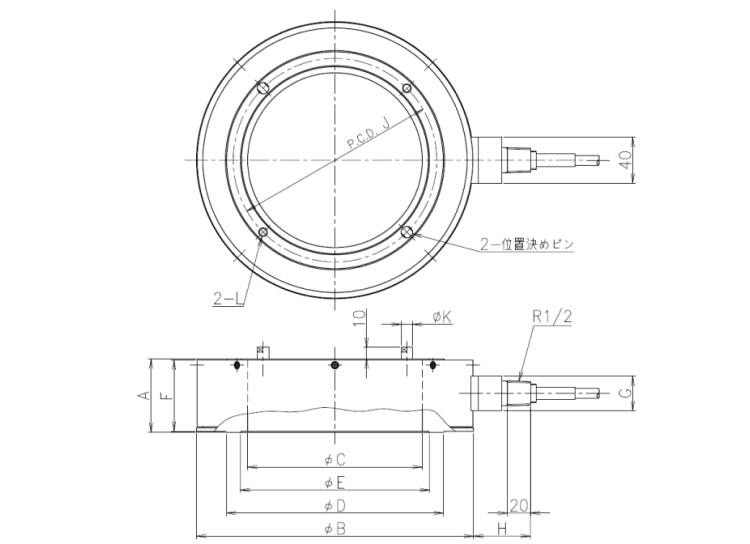

SHOWA_HCW Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

H

J

K

L

Natural frequency

Weight

HCW-1MN

1MN

64

241

152

186.6

164.6

62

30

49.5

177

10

M8,10 deep

21.9kHz

8kg

HCW-2MN

2MN

70

355

230

295

265

68

34

62.5

280

10

M8,10 deep

19.0kHz

24kg

HCW-5MN

5MN

70

355

230

316

240

68

34

62.5

280

20

M10,15 deep

27.3kHz

24kg

規格

Safe Overload

150％R.C.

Rated Output

1mV/V±1%

Nonlinearity

1%R.O.

Hysteresis

1%R.O.

Repeatability

0.3%R.O.

Excitation Voltage

12V (or less)

Safe Excitation Voltage

20V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

-10 to 60℃

Safe Temp.Range

-30 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.01%/℃

Cable

Φ8mm-4wire shielded cable, length: 10ｍ
HCWB

外型尺寸

SHOWA_HCWB Appearance Dimensions

Model and Capacity / Dimension / etc. (unit: mm)

Model

Capacity

A

B

C

D

E

F

G

H

I

J/K

Weight

HCWB-30KN

30kN

28

117

85

65

40

90

9.5

104

52

M5,10 deep

1.6kg

HCWB-50KN

50kN

28

155

124

102

72

128

9.5

140

87

M6,12 deep

2.5kg

HCWB-100KN

100kN

32

198

156

134

90

163

10

182

112

M6,12 deep

5.0kg

HCWB-200KN

200kN

40

220

180

156

110

186

12

196

132

M6,12 deep

7.2kg

HCWB-300KN

300kN

50

285

233

205

145

238

15

260

170

M6,12 deep

15kg

HCWB-500KN

500kN

50

335

285

255

200

290

15

310

230

M6,12 deep

18kg

規格

Safe Overload

150％R.C.

Rated Output

1mV/V±1%

Nonlinearity

1%R.O.

Hysteresis

1%R.O.

Repeatability

0.3%R.O.

Excitation Voltage

10V (or less)

Safe Excitation Voltage

15V

Input Resistance

350Ω

Output Resistance

350Ω

Compensated Temp.Range

-10 to 60℃

Safe Temp.Range

-20 to 80℃

Temp.Effect on Zero

0.01%R.O./℃

Temp.Effect on Output

0.01%/℃

Cable

Φ6mm-4wire shielded cable, length: 0.5ｍ

Attached connector

Jack / PRC03-32A10-7F

Attached cable

L-A-5

其他詳細內容可以下載右方產品規格，或預約安排拜訪，由巨克富科技專人詳細為您解說及產品示範。
CONTACT US

© 2019 Chief SI INC. - Design By Armlet
