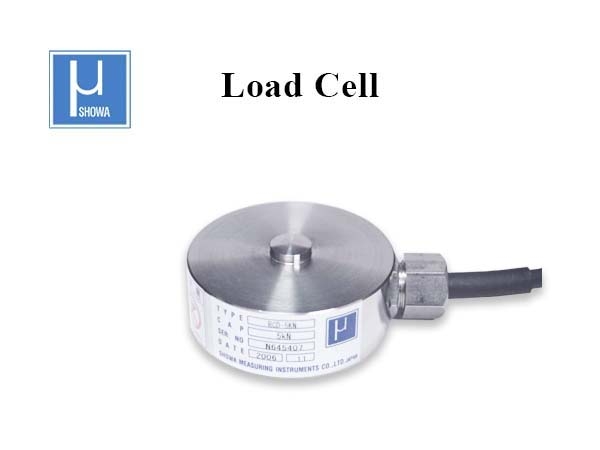

SHOWA 昭和測器高精度荷重元

Compression Load Cells Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp. Range (℃)
RCU-A	Coaxial beam type, High Precision, General Purpose	10kN,..200kN	0.03	3.0±1%	－10 to 60
RC	Column type, Spherical mounting plate, General Purpose	10kN,..5MN	0.2	1.5±1%	－10 to 60
RCB	Coaxial beam type, General Purpose	50N,..5kN	0.15	1.5±1%	－10 to 60
RCD	Coaxial beam type, General Purpose	500N,..200kN	0.15	2.0±1%	－10 to 60
RCD-UA	Coaxial beam type, Water Proof, General Purpose	500N,..200kN	0.15	2.0±1%	－10 to 60
MRD	Ultra-small type, General Purpose	5kN,10kN	0.5	1.0±20%	0 to 60
MRD-C	Ultra-small type, General Purpose	10N,..2kN	0.3	1.0±20%	0 to 60
MRD-H	High-temperature, small, general-purpose	100N,..10kN	1	1.0±20%	20 to 150
MRU	Ultra-small type, General Purpose	200N,..1kN	2	1.0±20%	0 to 60
MRU-H	High-temperature type, Ultra-compact, General Purpose	200N,..1kN	2	1.0±20%	20 to 150
MRH	Ultra-miniature and general-purpose	5N,..100N	0.5	0.5~1.0±25%	0 to 60
MR	Small type, General Purpose	5N,..100N	1	1.0±20%	20 to 60
HCS	Small & Washer type, measurement of axial power of bolts, General Purpose※1	25kN,..100kN	3	1.5 to 1.8±20%	－10 to 60
PHC	Center Hole type, General Purpose※1	5kN,..500kN	0.5	1.0±1%	－10 to 70
HCW	Washer type, Rolling mill & Forging press machine※1	1MN,..5MN	1	1.0±1%	－10 to 60
HCWB	Low cost, Washer type, General Purpose※1	30kN,..500kN	1	1.0±1%	－10 to 60

Items with Marks (※1) are produced only on order placed.

型號

RCU-A Coaxial beam type, high accuracy, general purpose
RC Column type, spherical mounting plate, general purpose
RCB Coaxial beam type, general Purpose
RCD Coaxial beam type, general purpose
RCD-UA Coaxial beam type, waterproof, general purpose
MRD Ultra-small type, general purpose
MRD-C Ultra-small type, general Purpose
MRD-H High-temperature, small, general-purpose
MRU Ultra-small type, general purpose
MRU-H High-temperature type, ultra-compact, general purpose
MRH Ultra-miniature and general-purpose
MR Small type, general purpose
HCS Small & washer type, measurement of axial power of bolts, general purpose
PHC Center hole type, general purpose
HCW Washer type, rolling mill & forging press machine
HCWB Low cost, washer type, general purpose

RCU-A

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	H	J	Natural frequency	Weight
RCU-10KNA	10kN	110	88	16	102	55	69	SR70	60	M6,10 deep	3.0kHz	3.0kg
RCU-20KNA	20kN	130	88	24	120	67	69	SR100	60	M6,10 deep	2.3kHz	4.2kg
RCU-50KNA	50kN	130	88	24	120	67	69	SR100	60	M6,10 deep	2.6kHz	4.2kg
RCU-100KNA	100kN	190	127	28	180	90	95	SR100	80	M8,15 deep	2.1kHz	11kg
RCU-200KNA	200kN	280	166	33	268	135	117	SR100	90	M8,15 deep	1.7kHz	27kg

規格

Safe Overload	150％R.C.
Rated Output	3mV/V±1％
Nonlinearity	0.03%R.O.
Hysteresis	0.03%R.O.
Repeatability	0.02%R.O.
Excitation Voltage	12V (or less)
Safe Excitation Voltage	20V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	－10 to 60℃
Safe Temp.Range	－30 to 80℃
Temp.Effect on Zero	0.002%R.O./℃
Temp.Effect on Output	0.002%/℃
Cable	Φ9.6mm-6wire shielded cable, length: 5m

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	H	J	K	Natural frequency	Weight
RC-10KN	10kN	102	80	45	14	18	71	10.5	94.5	60	3- Φ5.5	1.3kHz	1.4kg
RC-20KN	20kN	102	80	45	14	18	71	10.5	94.5	60	3- Φ5.5	5.4kHz	1.4kg
RC-50KN	50kN	110	80	40	20	15	95	10.5	93	65	4- Φ6.5	9.0kHz	1.6kg
RC-100KN	100kN	120	100	50	30	21	105	10.5	108	80	4- Φ8.5	8.3kHz	2.0kg
RC-200KN	200kN	150	120	66	40	30	134	11	126	100	4- Φ8.5	8.1kHz	3.2kg
RC-500KN	500kN	210	150	98	60	48	185	20	157	125	4- Φ10.5	4.8kHz	13kg
RC-1MN	1MN	276	250	143	100	68	245	21	225	190	4- Φ13.0	3.7kHz	30kg
RC-2MN	2MN	331	280	170	130	95	296	25	255	220	4- Φ13.0	3.7kHz	46kg
RC-5MN	5MN	430	380	242	200	150	383	37	348	320	4- Φ15.5	2.9kHz	122kg

規格

Safe Overload	150％R.C.
Rated Output	1.5mV/V±1％
Nonlinearity	0.2%R.O.
Hysteresis	0.2%R.O.
Repeatability	0.1%R.O.
Excitation Voltage	12V (or less)
Safe Excitation Voltage	20V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	－10 to 60℃
Safe Temp.Range	－30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.01%/℃
Connector(on body)	Receptacle / PRC03-21A10-7F
Attached cable	L-A-5

RCB

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	Natural frequency	Weight
RCB-50N	50N	0.3kHz	2.0kg
RCB-100N	100N	0.6kHz	2.1kg
RCB-200N	200N	0.9kHz	2.1kg
RCB-500N	500N	1.3kHz	2.1kg
RCB-1KN	1kN	1.9kHz	2.1kg
RCB-2KN	2kN	2.5kHz	2.3kg
RCB-5KN	5kN	4.7kHz	2.3kg

規格

Safe Overload	150％R.C.
Rated Output	1.5mV/V±1％
Nonlinearity	0.15%R.O.
Hysteresis	0.15%R.O.
Repeatability	0.1%R.O.
Excitation Voltage	10V (or less)
Safe Excitation Voltage	15V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	－10 to 60℃
Safe Temp.Range	－30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.01%/℃
Attached connector	Receptacle / PRC03-21A10-7F
Attached cable	L-A-5

RCD

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	H	J	Natural frequency	Weight
RCD-500N	500N	25	60	22	12	SR50	36	45	42	M5,6 deep	3.6kHz	0.7kg
RCD-1KN	1kN	25	60	22	12	SR50	36	45	42	M5,6 deep	5.4kHz	0.7kg
RCD-2KN	2kN	25	60	22	12	SR50	36	45	42	M5,6 deep	7.8kHz	0.7kg
RCD-5KN	5kN	25	60	22	12	SR50	36	45	42	M5,6 deep	13kHz	0.7kg
RCD-10KN	10kN	25	60	22	12	SR50	36	45	42	M5,6 deep	16kHz	0.8kg
RCD-20KN	20kN	25	60	22	12	SR50	36	45	42	M5,6 deep	23kHz	0.8kg
RCD-50KN	50kN	40	100	35	24	SR70	65	80	80	M8,15 deep	7.7kHz	1.8kg
RCD-100KN	100kN	40	100	35	24	SR70	65	80	80	M8,15 deep	11kHz	1.8kg
RCD-200KN	200kN	45	120	40	33	SR100	73	90	90	M8,15 deep	5kHz	3.1kg

規格

Safe Overload	150％R.C.
Rated Output	2mV/V±1％
Nonlinearity	0.15%R.O.(500N～20kN)
Nonlinearity	0.10%R.O.(50kN～200kN)
Hysteresis	0.15%R.O.
Repeatability	0.1%R.O.
Excitation Voltage	12V (or less)
Safe Excitation Voltage	20V
Input Resistance	425Ω
Output Resistance	350Ω
Compensated Temp.Range	－10 to 60℃
Safe Temp.Range	－30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.01%/℃
Cable	Φ6mm-4wire shielded cable, length : 5m(500N to 20kN)
Cable	Φ8mm-4wire shielded cable, length: 5m(50kN to 200kN

RCD-UA

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	H	J	K	Natural frequency	Weight
RCD-500NUA	500N	30	60	50	27	SR50	12	36	88	M5,6 deep	42	3.6kHz	0.5kg
RCD-1KNUA	1kN	30	60	50	27	SR50	12	36	88	M5,6 deep	42	5.4kHz	0.5kg
RCD-2KNUA	2kN	30	60	50	27	SR50	12	36	88	M5,6 deep	42	7.8kHz	0.5kg
RCD-5KNUA	5kN	30	60	50	27	SR50	12	36	88	M5,6 deep	42	13kHz	0.5kg
RCD-10KNUA	10kN	30	60	50	27	SR50	12	36	88	M5,6 deep	42	16kHz	0.5kg
RCD-20KNUA	20kN	30	60	50	27	SR50	12	36	88	M5,6 deep	42	23kHz	0.6kg
RCD-50KNUA	50kN	40	98	88	35	SR70	24	65	98	M6,12 deep	76	7.7kHz	1.6kg
RCD-100KNUA	100kN	40	98	88	35	SR70	24	65	98	M6,12 deep	76	11kHz	1.6kg
RCD-200KNUA	200kN	45	116	106	40	SR100	33	73	107	M8,15 deep	90	5kHz	2.9kg

規格

Safe Overload	150％R.C.
Rated Output	2mV/V±1％
Nonlinearity	0.15%R.O.(500N～20kN)
Nonlinearity	0.10%R.O.(50kN～200kN)
Hysteresis	0.15%R.O.
Repeatability	0.1%R.O.
Excitation Voltage	12V (or less)
Safe Excitation Voltage	20V
Input Resistance	425Ω
Output Resistance	350Ω
Compensated Temp.Range	－10 to 60℃
Safe Temp.Range	－30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.01%/℃
Cable	Φ8.5mm-4wire shielded cable, length: 5m

MRD

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	Natural frequency	Weight
MRD-5KN	5kN	13.5	25	11	6	SR15	30	3	92kHz	12g
MRD-10KN	10kN	13.5	25	11	6	SR15	30	3	140kHz	12g

規格

Safe Overload	150％R.C.
Rated Output	1mV/V±20％
Nonlinearity	0.5%R.O.
Hysteresis	0.5%R.O.
Repeatability	0.3%R.O.
Excitation Voltage	4V (or less)
Safe Excitation Voltage	6V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	0 to 60℃
Safe Temp.Range	－10 to 60℃
Temp.Effect on Zero	0.2%R.O./℃
Temp.Effect on Output	0.1%/℃
Cable	Φ2.8mm-4wire shielded cable, length: 3ｍ

MRD-C

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	Natural frequency	Weight
MRD-10NC	10N	4	12	3.3	1.8	SR2	17	2.3	16kHz	2.8g
MRD-20NC	20N	4	12	3.3	1.8	SR2	17	2.3	22kHz	2.8g
MRD-50NC	50N	4	12	3.3	1.8	SR2	17	2.3	33kHz	2.81g
MRD-100NC	100N	9.5	20	7.5	2.5	SR4	25	3	21kHz	5.2g
MRD-200NC	200N	9.5	20	7.5	2.5	SR4	25	3	28kHz	5.2g
MRD-500NC	500N	9.5	20	7.5	2.5	SR4	25	3	41kHz	5.2g
MRD-1KNC	1kN	9.5	20	7.5	2.5	SR4	25	3	59kHz	5.2g
MRD-2KNC	2kN	9.5	20	7.5	2.5	SR4	25	3	85kHz	5.2g
MRD-5KN	5kN	13.5	25	11	6	SR15	30	3	92kHz	12g
MRD-10KN	10kN	13.5	25	11	6	SR15	30	3	140kHz	12g

規格

Safe Overload	150％R.C.
Rated Output	1mV/V±20％
Nonlinearity	0.3%R.O. (10N~2KN)
Nonlinearity	0.5%R.O. (5KN, 10KN)
Hysteresis	0.3%R.O. (10N~2KN)
Hysteresis	0.5%R.O. (5KN, 10KN)
Repeatability	0.2%R.O. (10N~2KN)
Repeatability	0.3%R.O. (5KN, 10KN)
Excitation Voltage	4V (or less)
Safe Excitation Voltage	6V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	0 to 60℃
Safe Temp.Range	－10 to 60℃
Temp.Effect on Zero	0.2%R.O./℃
Temp.Effect on Output	0.1%/℃
Cable	Φ2mm-4wire shielded cable, length: 3ｍ(10N to 50N)
Cable	Φ2.8mm-4wire shielded cable, length: 3ｍ(100N to 10kN)

MRD-H

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	Natural frequency	Weight
MRD-100NH	100N	9.5	20	7.5	2.5	SR4	25	21kHz	5.2g
MRD-200NH	200N	9.5	20	7.5	2.5	SR4	25	28kHz	5.2g
MRD-500NH	500N	9.5	20	7.5	2.5	SR4	25	41kHz	5.2g
MRD-1KNH	1kN	9.5	20	7.5	2.5	SR4	25	59kHz	5.2g
MRD-2KNH	2kN	9.5	20	7.5	2.5	SR4	25	85kHz	5.2g
MRD-5KNH	5kN	13.5	25	11	6	SR15	30	92kHz	12g
MRD-10KNH	10kN	13.5	25	11	6	SR15	30	140kHz	12g

規格

Safe Overload	120％R.C.
Rated Output	1mV/V±20％
Nonlinearity	1%R.O.
Hysteresis	1%R.O.
Repeatability	0.5%R.O.
Excitation Voltage	4V (or less)
Safe Excitation Voltage	6V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	20 to 150℃
Safe Temp.Range	0 to 160℃
Temp.Effect on Zero	0.2%R.O./℃
Temp.Effect on Output	0.1%/℃
Cable	Φ2.2mm-4-conductor shielded cable 3 m, bare end

MRU

外型尺寸

Model and Capacity / etc. (unit: mm)

Model	Capacity	Natural frequency	Weight
MRU-200N	200N	47kHz	3g
MRU-500N	500N	75kHz	3g
MRU-1KN	1kN	110kHz	3g

規格

Safe Overload	120％R.C.
Rated Output	1mV/V±20％
Nonlinearity	2%R.O.
Hysteresis	2%R.O.
Repeatability	1%R.O.
Excitation Voltage	2V (or less)
Safe Excitation Voltage	3V
Input Resistance	120Ω
Output Resistance	120Ω
Compensated Temp.Range	0 to 60℃
Safe Temp.Range	－10 to 60℃
Temp.Effect on Zero	0.2%R.O./℃
Temp.Effect on Output	0.03%/℃
Cable	Φ2mm-4wire shielded cable, length: 2ｍ

MRU-H

外型尺寸

Model and Capacity / etc. (unit: mm)

Model	Capacity	Natural frequency	Weight
MRU-200NH	200N	47kHz	3g
MRU-500NH	500N	75kHz	3g
MRU-1KNH	1kN	110kHz	3g

規格

Safe Overload	120％R.C.
Rated Output	1mV/V±20％
Nonlinearity	2%R.O.
Hysteresis	2%R.O.
Repeatability	1%R.O.
Excitation Voltage	2V (or less)
Safe Excitation Voltage	3V
Input Resistance	120Ω
Output Resistance	120Ω
Compensated Temp.Range	20 to 150℃
Safe Temp.Range	0 to 160℃
Temp.Effect on Zero	0.2%R.O./℃
Temp.Effect on Output	0.1%/℃
Cable	Φ2.2 mm – 4-conductor shielded cable 2 m, bare end

MRH

外型尺寸

Model and Capacity / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	Natural frequency	Weight
MRH-5N	5N	3.4	12	10	2.4	8	9.5	6.8kHz	1.7g
MRH-10N	10N	3.4	12	10	2.4	8	9.5	6.8kHz	1.7g
MRH-20N	20N	3.4	12	10	2.4	8	9.5	10kHz	1.7g
MRH-50N	50N	4.2	12	10	3.2	8	9.5	20kHz	2.2g
MRH-100N	100N	4.2	14	12	3.2	8	10.5	29kHz	3.3g

規格

Safe Overload	150％R.C.
Rated Output	0.5 mV/V±25 % (5 N) 1 mV/V±25 % (10 N ~ 100N)
Nonlinearity	0.5%R.O.
Hysteresis	0.5%R.O.
Repeatability	0.3%R.O.
Excitation Voltage	4V (or less)
Safe Excitation Voltage	6V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	0 to 60℃
Safe Temp.Range	－10 to 60℃
Temp.Effect on Zero	0.2%R.O./℃
Temp.Effect on Output	0.05%/℃
Cable	Φ2 mm – 4-conductor shielded cable 3 m, bare end

外型尺寸

Model and Capacity / etc. (unit: mm)

Model	Capacity	Natural frequency	Weight
MR-5N	5N	1.6kHz	10g
MR-10N	10N	2.5kHz	10g
MR-20N	20N	4.1kHz	10g
MR-50N	50N	6.6kHz	10g
MR-100N	100N	9.5kHz	10g

規格

Safe Overload	120％R.C.
Rated Output	1mV/V±20％
Nonlinearity	1%R.O.
Hysteresis	1%R.O.
Repeatability	0.5%R.O.
Excitation Voltage	2V (or less)
Safe Excitation Voltage	3V
Input Resistance	120Ω
Output Resistance	120Ω
Compensated Temp.Range	20 to 60℃
Safe Temp.Range	0 to 60℃
Temp.Effect on Zero	0.03%R.O./℃
Temp.Effect on Output	0.03%/℃
Cable	Φ3mm-4wire shielded cable, length: 2ｍ

HCS

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	Natural frequency	Weight
HCS-25KN	25kN	16	36	24	6.1	0.5	1.3kHz	65g
HCS-50KN	50kN	16	36	24	8.1	0.5	1.8kHz	70g
HCS-70KN	70kN	16	36	24	10.1	0.5	2.0kHz	75g
HCS-100KN	100kN	16	36	24	12.1	0.5	2.3kHz	75g

規格

Safe Overload	150％R.C.
Rated Output	1.5mV/V±20%(25kN～70kN)
Rated Output	1.8mV/V±20%(100kN)
Nonlinearity	3%R.O.
Hysteresis	3%R.O.
Repeatability	2%R.O.
Excitation Voltage	10V (or less)
Safe Excitation Voltage	15V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	-10 to 60℃
Safe Temp.Range	-30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.03%/℃
Cable	Φ4mm-4wire shielded cable, length: 5m
Attached connector	PRC03-12A10-7M

PHC

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	Natural frequency	Weight
PHC-5KN	5kN	40	35	50	1	24	10	4-M4,8 deep	8.7kHz	0.3kg
PHC-10KN	10kN	62	55	70	2	44	18	4-M5,8 deep	5.4kHz	1.0kg
PHC-20KN	20kN	62	55	70	2	44	18	4-M5,8 deep	7.5kHz	1.0kg
PHC-30KN	30kN	62	55	70	2	44	18	4-M5,8 deep	9.2kHz	1.0kg
PHC-50KN	50kN	62	55	70	2	44	18	4-M5,8 deep	11kHz	1.0kg
PHC-100KN	100kN	62	55	80	2	44	18	4-M5,8 deep	12kHz	1.3kg
PHC-200KN*	200kN	88	80	100	2	60	20	4-M5,12 deep	9.6kHz	2.9kg
PHC-300KN*	300kN	100	90	120	2	70	20	-4-M5,15 deep	8.5kHz	4.6kg
PHC-500KN*	500kN	134	120	150	2	90	30	-4-M10,16 deep	6.6kHz	11kg

REMARKS:
* Dimensions of the intersection in the in-low portion for the mounting are ΦFH8 and ΦBh7 on both top and bottom surfaces. Note however that an effective size of the ΦFH8 is 5 mm.
* The weight given in the list does not include the weight of the cable.

規格

Safe Overload	120％R.C.
Rated Output	1mV/V±1%
Nonlinearity	0.5%R.O.
Hysteresis	0.5%R.O.
Repeatability	0.3%R.O.
Excitation Voltage	12V (or less)
Safe Excitation Voltage	20V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	-10 to 70℃
Safe Temp.Range	-30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.03%/℃
Cable	Φ6mm-4wire shielded cable, length: 3ｍ

HCW

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	H	J	K	L	Natural frequency	Weight
HCW-1MN	1MN	64	241	152	186.6	164.6	62	30	49.5	177	10	M8,10 deep	21.9kHz	8kg
HCW-2MN	2MN	70	355	230	295	265	68	34	62.5	280	10	M8,10 deep	19.0kHz	24kg
HCW-5MN	5MN	70	355	230	316	240	68	34	62.5	280	20	M10,15 deep	27.3kHz	24kg

規格

Safe Overload	150％R.C.
Rated Output	1mV/V±1%
Nonlinearity	1%R.O.
Hysteresis	1%R.O.
Repeatability	0.3%R.O.
Excitation Voltage	12V (or less)
Safe Excitation Voltage	20V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	-10 to 60℃
Safe Temp.Range	-30 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.01%/℃
Cable	Φ8mm-4wire shielded cable, length: 10ｍ

HCWB

外型尺寸

Model and Capacity / Dimension / etc. (unit: mm)

Model	Capacity	A	B	C	D	E	F	G	H	I	J/K	Weight
HCWB-30KN	30kN	28	117	85	65	40	90	9.5	104	52	M5,10 deep	1.6kg
HCWB-50KN	50kN	28	155	124	102	72	128	9.5	140	87	M6,12 deep	2.5kg
HCWB-100KN	100kN	32	198	156	134	90	163	10	182	112	M6,12 deep	5.0kg
HCWB-200KN	200kN	40	220	180	156	110	186	12	196	132	M6,12 deep	7.2kg
HCWB-300KN	300kN	50	285	233	205	145	238	15	260	170	M6,12 deep	15kg
HCWB-500KN	500kN	50	335	285	255	200	290	15	310	230	M6,12 deep	18kg

規格

Safe Overload	150％R.C.
Rated Output	1mV/V±1%
Nonlinearity	1%R.O.
Hysteresis	1%R.O.
Repeatability	0.3%R.O.
Excitation Voltage	10V (or less)
Safe Excitation Voltage	15V
Input Resistance	350Ω
Output Resistance	350Ω
Compensated Temp.Range	-10 to 60℃
Safe Temp.Range	-20 to 80℃
Temp.Effect on Zero	0.01%R.O./℃
Temp.Effect on Output	0.01%/℃
Cable	Φ6mm-4wire shielded cable, length: 0.5ｍ
Attached connector	Jack / PRC03-32A10-7F
Attached cable	L-A-5

其他詳細內容可以下載右方產品規格，或預約安排拜訪，由巨克富科技專人詳細為您解說及產品示範。

技術諮詢

其他詳細內容可下載產品型錄介紹，或預約安排拜訪，由巨克富科技專人詳細為您解說及產品示範。

Product & Service

Product & Service

產品搜尋

Compression Load Cells

SHOWA 昭和測器高精度荷重元

Compression Load Cells Selection Table
