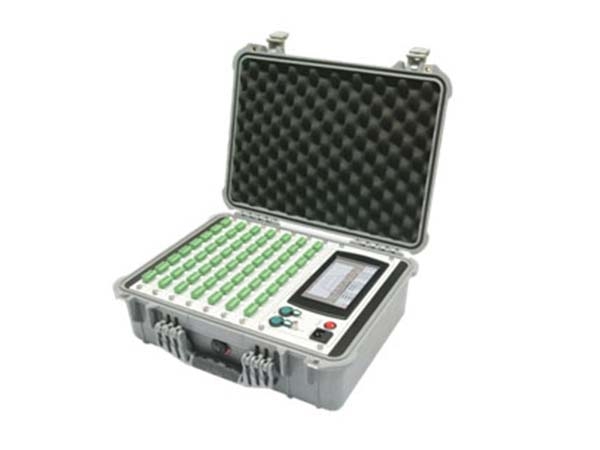

Model

GTDL-600

GTDL-600-S(static)

Number of Channel

8, 16, 24, 32, 40, 48, 56 channel

Display & data memory

7” TFT Touchable LCD

16G SD Data Memory, USB Memory Stick Port(EXT)

Measure Hz

1,000Hz

Bridge exciting time:50msec

Connector for sensor

5p Screw connector or TAJIMI

Input Sensor

- 1Gage & 2Gage:120Ω, 350Ω

- 4 Gage Bridge Sensor : 0.5 mV/V ~ 100 mV/V

- Potentiometer Sensor

- Pt100 temperature sensor

- Voltage: 10V

Strain Input Range

10,000, 100,000, 1,000,000 X 10^-6 strain

Low Pass Filter

10Hz, 100Hz, 1KHz, Pass Program Selectable

Interface

USB

Program

Multiscan S/W & Multiload S/W

Dimension

500(W)*190(H)*380(D)mm

Power

AC 220 V, 50~60 Hz or DC 12V
