Compression &Tension Load Cells
Tension & Compression Load Cells Selection Table
|
Type |
Features and Applications |
Capacity Range |
Nonlinearity (%RO) |
Rated Output (mV/V) |
Compensated Temp. Range (℃) |
|
SH |
Shear beam type, Small, General Purpose |
1kN,..10MN |
0.15 |
0.75~1.5±1% |
－10 to 60 |
|
SHE |
Shear beam type, High output, General Purpose |
5kN,..1MN |
0.05 to 0.15 |
2.0±1% |
－10 to 60 |
|
SHE-UA |
Shear beam type, Water Proof※1 |
5kN,..200kN |
0.05 |
2.0±1% |
－10 to 60 |
|
SHE-LH |
Shear beam type, High & Low Temperature※1 |
5kN,..200kN |
0.2 |
2.0±20% |
－40 to 150 |
|
SHU |
Shear beam type, High Accuracy |
10kN,..1MN |
0.03 |
2.0±1% |
－10 to 60 |
|
RCT |
Pipe type, General Purpose※2 |
10kN,..1MN |
0.2 |
1.5±1% |
－10 to 60 |
|
RCB |
Coaxial beam type, General Purpose※3 |
50N,..5kN |
0.15 |
1.5±1% |
－10 to 60 |
|
RCT-E |
Coaxial beam type, High Accuracy, General Purpose |
10N,..5kN |
0.05 |
1.5±1% |
－10 to 45 |
|
DBU |
Coaxial beam type, High Accuracy |
50N,..5kN |
0.02 |
2.0±1% |
－10 to 60 |
|
BUX |
Coaxial beam type, Low-profile & High Accuracy※1 |
100N,..5kN |
0.012 |
2.0±0.1% |
－10 to 50 |
|
WBU |
Beam type, High Accuracy, Metal bellows, General Purpose |
10N,..2kN |
0.015 |
2.0±1% |
－10 to 60 |
|
WBE |
Beam type, High Accuracy, High output, General Purpose |
50N,..10kN |
0.05 |
3.0±1% |
－10 to 60 |
|
WBS |
Beam type, High Accuracy, Small size, General Purpose |
50N,..2kN |
0.05 |
3.0±1% |
－10 to 60 |
|
WBJ |
Beam type, Ultralow-Capacity, High Accuracy, General Purpose |
0.2N,..2N |
0.035 |
1.0±10% |
－10 to 45 |
|
DBJ |
Coaxial beam type, Ultralow-Capacity, High Accuracy, General Purpose |
1N,..20N |
0.025 |
2.0±5% |
－10 to 45 |
- Items with Marks (※1) are produced only on order placed.
- Cap.500kN & 1MN with Marks (※2) will have Compression calibration data only.
- It's Compression calibration with Marks (※3) only. / Tension is optional calibration.
Model
- SH Shear beam type, small, general purpose
- SHE Shear beam type, high output, general purpose
- SHE-UA Shear beam type, water proof
- SHE-LH Shear beam type, high & low temperature
- SHU Shear beam type, high accuracy
- RCT Pipe type, general purpose
- RCB Coaxial beam type, general purpose
- RCT-E Coaxial beam type, high accuracy, general purpose
- DBU Coaxial beam type, high accuracy

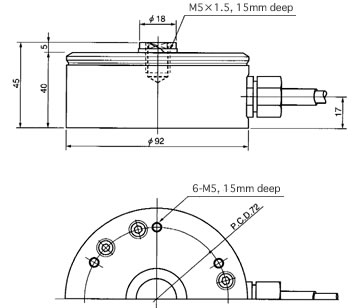

- BUX Coaxial beam type, low-profile & high accuracy
- WBU Beam type, high accuracy, metal bellows, general purpose

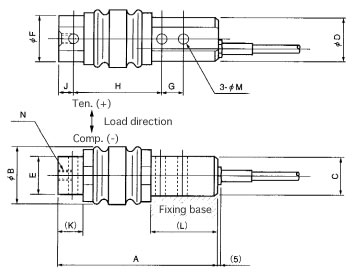

- WBE Beam type, high accuracy, high output, general purpose
- WBS Beam type, high accuracy, small size, general purpose
- WBJ Beam type, ultralow-capacity, high accuracy, general purpose
- DBJ Coaxial beam type, ultralow-capacity, high accuracy, general purpose
SH
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H/J |
N |
P |
Q |
Natural frequency |
Weight |
|
SH-1KN |
1kN |
25 |
65 |
22 |
70 |
41 |
18 |
14 |
0.5/2 |
M12x1 |
52 |
8-Φ6.5 |
6.5kHz |
0.6kg |
|
SH-2KN |
2kN |
25 |
65 |
22 |
70 |
41 |
18 |
14 |
0.5/2 |
M12x1 |
52 |
8-Φ6.5 |
8.0kHz |
0.6kg |
|
SH-5KN |
5kN |
25 |
65 |
22 |
70 |
41 |
18 |
14 |
0.5/2 |
M12x1 |
52 |
8-Φ6.5 |
11kHz |
0.6kg |
|
SH-10KN |
10kN |
25 |
65 |
22 |
70 |
41 |
18 |
14 |
0.5/2 |
M12x1 |
52 |
8-Φ6.5 |
16kHz |
0.6kg |
|
SH-20KN |
20kN |
30 |
65 |
22 |
70 |
41 |
18 |
14 |
0.5/2 |
M12x1 |
52 |
8-Φ6.5 |
21kHz |
0.7kg |
|
SH-50KN |
50kN |
30 |
88 |
27 |
92 |
60 |
30 |
22 |
1/2 |
M20x1.5 |
74 |
8-Φ9.0 |
18kHz |
1.1kg |
|
SH-100KN |
100kN |
34 |
117 |
31 |
121 |
82 |
46 |
34 |
1/2 |
M32x2 |
100 |
8-Φ11 |
16kHz |
2.2kg |
|
SH-200KN |
200kN |
50 |
166 |
- |
- |
116 |
60 |
44 |
1/2 |
M40x2 |
142 |
8-Φ17 |
12kHz |
6.0kg |
|
SH-500KN |
500kN |
70 |
256 |
- |
- |
182 |
98 |
75 |
2/2 |
M70x2 |
217 |
8-Φ25 |
8.9kHz |
28kg |
|
SH-1MN |
1MN |
96 |
372 |
- |
- |
272 |
144 |
105 |
2/2 |
M100x3 |
322 |
8-Φ34 |
7.1kHz |
82kg |
- The clearance tolerance of "G" comes to "H7".
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
0.75mV/V±1％(1kN) |
|
1.0mV/V±1％(2kN) |
|
|
1.5mV/V±1％(5kN to 1MN) |
|
|
Nonlinearity |
0.15%RO |
|
Hysteresis |
0.15%RO |
|
Nonrepeatability |
0.1%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω nominal |
|
Output Resistance |
350Ω nominal |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.01%RO/℃(1kN,2kN) |
|
0.005%RO/℃(5kN to 1MN) |
|
|
Temp.Effect on Output |
0.01%/℃ |
|
Connector(on body) |
Receptacle / PRC03-21A10-7F |
|
Attached cable |
L-A-5 |
SHE
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F/G |
L |
M |
N |
Natural frequency |
Weight |
|
SHE-5KN |
5kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
3.5kHz |
2.2kg |
|
SHE-10KN |
10kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
5.0kHz |
2.2kg |
|
SHE-20KN |
20kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
7.6kHz |
2.2kg |
|
SHE-50KN |
50kN |
50 |
120 |
74 |
40 |
26 |
1/4 |
M24*1.5 |
95 |
8-Φ11 |
8.8kHz |
3.7kg |
|
SHE-100N |
100kN |
65 |
160 |
100 |
60 |
40 |
1/5 |
M36*2 |
130 |
8-Φ18 |
7.0kHz |
8.5kg |
|
SHE-200KN |
200kN |
80 |
220 |
140 |
80 |
55 |
1/5 |
M50*2 |
180 |
8-Φ26 |
5.6kHz |
20kg |
|
SHE-500KN |
500kN |
100 |
330 |
200 |
135 |
90 |
2/7 |
M85*2 |
265 |
8-Φ33 |
5.9kHz |
54kg |
|
SHE-1MN |
1MN |
140 |
460 |
280 |
190 |
115 |
2/7 |
M110*3 |
370 |
16-Φ33 |
3.3kHz |
140kg |
- The clearance tolerance of "E" comes to "H7".
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.05%RO(5kN to 200kN) |
|
0.15%RO(500kN,1MN) |
|
|
Hysteresis |
0.1%RO(5kN to 200kN) |
|
0.15%RO(500kN,1MN) |
|
|
Repeatability |
0.03%RO(5kN to 200kN) |
|
0.1%RO(500kN,1MN) |
|
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Cable |
Φ8mm-4wire shielded cable, length: 5m |
|
Attached connector |
PRC03-12A10-7M |
SHE-UA
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F/G |
J |
K |
L |
Natural frequency |
Weight |
|
SHE-5KNUA |
5kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
3.5kHz |
2.0kg |
|
SHE-10KNUA |
10kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
5.0kHz |
2.0kg |
|
SHE-20KNUA |
20kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
7.6kHz |
2.0kg |
|
SHE-50KNUA |
50kN |
50 |
120 |
74 |
40 |
26 |
1/4 |
M24*1.5 |
95 |
8-Φ11 |
8.8kHz |
3.5kg |
|
SHE-100NUA |
100kN |
65 |
160 |
100 |
60 |
40 |
1/5 |
M36*2 |
130 |
8-Φ18 |
7.0kHz |
8.3kg |
|
SHE-200KNUA |
200kN |
80 |
220 |
140 |
80 |
55 |
1/5 |
M50*2 |
180 |
8-Φ26 |
5.6kHz |
20kg |
- The clearance tolerance of "E" comes to "H7".
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.05%RO |
|
Hysteresis |
0.1%RO |
|
Repeatability |
0.05%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Cable |
Φ8.5mm-4wire shielded cable, length: 5m |
SHE-LH
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F/G |
J |
K |
L |
Natural frequency |
Weight |
|
SHE-5KNLH |
5kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
3.5kHz |
2.2kg |
|
SHE-10KNLH |
10kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
5.0kHz |
2.2kg |
|
SHE-20KNLH |
20kN |
40 |
105 |
65 |
35 |
20 |
1/3 |
M18*1.5 |
85 |
8-Φ9 |
7.6kHz |
2.2kg |
|
SHE-50KNLH |
50kN |
50 |
120 |
74 |
40 |
26 |
1/4 |
M24*1.5 |
95 |
8-Φ11 |
8.8kHz |
3.7kg |
|
SHE-100KNLH |
100kN |
65 |
160 |
100 |
60 |
40 |
1/5 |
M36*2 |
130 |
8-Φ18 |
7.0kHz |
8.5kg |
|
SHE-200KNLH |
200kN |
80 |
220 |
140 |
80 |
55 |
1/5 |
M50*2 |
180 |
8-Φ26 |
5.6kHz |
20kg |
- The clearance tolerance of "E" comes to "H7".
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V |
|
Nonlinearity |
0.2%RO |
|
Hysteresis |
0.2%RO |
|
Repeatability |
0.1%RO |
|
Excitation Voltage |
10V (or less) |
|
Safe Excitation Voltage |
15V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－40 to 150℃ |
|
Safe Temp.Range |
－40 to 180℃ |
|
Temp.Effect on Zero |
0.02%RO/℃ (20 to 150℃) |
|
0.03%RO/℃ (－40 to 20℃) |
|
|
Temp.Effect on Output |
0.01%/℃ |
|
Cable |
Φ6mm-4wire shielded heat-resistant cable, length: 5m |
SHU
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
Natural frequency |
Weight |
|
SHU-10KN |
10kN |
80 |
100 |
22 |
72 |
42 |
78 |
M12*1.75, 20 deep |
80 |
M8, 12 deep |
6.0kHz |
3.2kg |
|
SHU-20KN |
20kN |
80 |
100 |
22 |
72 |
42 |
78 |
M16*2, 20 deep |
80 |
M8, 12 deep |
8.6kHz |
3.2kg |
|
SHU-50KN |
50kN |
95 |
125 |
34 |
85 |
52 |
94 |
M24*2, 30 deep |
95 |
M8, 15 deep |
6.4kHz |
6.8kg |
|
SHU-100KN |
100kN |
135 |
160 |
48 |
120 |
75 |
114 |
M36*2, 45 deep |
120 |
M8, 15 deep |
5.9kHz |
16kg |
|
SHU-200KN |
200kN |
170 |
200 |
65 |
155 |
100 |
136 |
M48*3, 60 deep |
160 |
M8, 15 deep |
4.9kHz |
34kg |
|
SHU-500KN |
500kN |
270 |
310 |
105 |
250 |
165 |
192 |
M80*3, 90 deep |
230 |
M16, 30 deep |
4.0kHz |
135kg |
|
SHU-1MN |
1MN |
330 |
400 |
150 |
310 |
210 |
239 |
M110*4, 110 deep |
300 |
M16, 40 deep |
3.5kHz |
280kg |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.03%RO |
|
Hysteresis |
0.03%RO |
|
Repeatability |
0.02%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.002%RO/℃ |
|
Temp.Effect on Output |
0.002%/℃ |
|
Cable |
Φ8mm-4wire shielded cable, length: 5m |
RCT
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
RCT-5KN-201 |
5kN |
70 |
34 |
29 |
50 |
10 |
10 |
26 |
64 |
M12*1.5,15 deep |
|
RCT-10KN |
10kN |
83 |
41 |
24 |
65 |
8 |
10 |
22 |
74 |
M14*1.5,15 deep |
|
RCT-20KN |
20kN |
98 |
50 |
29.5 |
73 |
11 |
14 |
26 |
83 |
M18*1.5,22 deep |
|
RCT-50KN |
50kN |
152 |
52 |
44.5 |
85 |
36 |
31 |
41 |
85 |
M28*1.5,34 deep |
|
RCT-100KN |
100kN |
200 |
70 |
59 |
110 |
47 |
43 |
4-Φ8 |
110 |
M40*1.5,45 deep |
|
RCT-200KN |
200kN |
270 |
96 |
84 |
145 |
65 |
60 |
4-Φ10 |
145 |
M54*2,65 deep |
|
RCT-500KN |
500kN |
420 |
146 |
129 |
220 |
102 |
98 |
4-Φ15 |
220 |
M84*2.5,100 deep |
|
RCT-1MN |
1MN |
560 |
195 |
174 |
290 |
140 |
130 |
4-Φ20 |
290 |
M110*3,130 deep |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
1.5mV/V±1％ |
|
Nonlinearity |
0.2%RO |
|
Hysteresis |
0.2%RO |
|
Repeatability |
0.1%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.01%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Connector(on body) |
Receptacle / PRC03-21A10-7F |
|
Attached cable |
L-A-5 |
RCB
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Natural frequency |
Weight |
|
RCB-50N |
50N |
0.3kHz |
2.0kg |
|
RCB-100N |
100N |
0.6kHz |
2.1kg |
|
RCB-200N |
200N |
0.9kHz |
2.1kg |
|
RCB-500N |
500N |
1.3kHz |
2.1kg |
|
RCB-1KN |
1kN |
1.9kHz |
2.1kg |
|
RCB-2KN |
2kN |
2.5kHz |
2.3kg |
|
RCB-5KN |
5kN |
4.7kHz |
2.3kg |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
1.5mV/V±1％ |
|
Nonlinearity |
0.15%RO |
|
Hysteresis |
0.15%RO |
|
Repeatability |
0.1%RO |
|
Excitation Voltage |
10V (or less) |
|
Safe Excitation Voltage |
15V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.01%RO/℃ |
|
Temp.Effect on Output |
0.01%/℃ |
|
Connector(on body) |
Receptacle / PRC03-21A10-7F |
|
Attached cable |
L-A-5 |
RCT-E
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
Weight |
|
RCT-10NE |
10N |
57 |
60 |
20 |
52 |
5 |
25 |
M12*1.5,15 deep |
52 |
M4,7 deep |
0.6kg |
|
RCT-20NE |
20N |
57 |
60 |
20 |
52 |
5 |
25 |
M12*1.5,15 deep |
52 |
M4,7 deep |
0.6kg |
|
RCT-50NE |
50N |
70 |
70 |
20 |
65 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.1kg |
|
RCT-100NE |
100N |
70 |
70 |
20 |
65 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.1kg |
|
RCT-200NE |
200N |
70 |
70 |
20 |
65 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.1kg |
|
RCT-500NE |
500N |
70 |
70 |
20 |
65 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.1kg |
|
RCT-1KNE |
1kN |
70 |
70 |
20 |
65 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.1kg |
|
RCT-2KNE |
2kN |
70 |
70 |
20 |
65 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.2kg |
|
RCT-5KNE |
5kN |
80 |
70 |
20 |
75 |
5 |
35 |
M12*1.5,20 deep |
60 |
M6,11 deep |
1.6kg |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
1.5mV/V±1％ |
|
Nonlinearity |
0.05%RO |
|
Hysteresis |
0.05%RO |
|
Repeatability |
0.03%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.005%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 5m |
|
Attached connector |
PRC03-12A10-7M |
DBU
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Natural frequency |
Weight |
|
DBU-50N |
50N |
0.18kHz |
3kg |
|
DBU-100N |
100N |
0.27kHz |
3kg |
|
DBU-200N |
200N |
0.41kHz |
3kg |
|
DBU-500N |
500N |
0.75kHz |
3kg |
|
DBU-1KN |
1kN |
0.77kHz |
3kg |
|
DBU-2KN |
2kN |
1.6kHz |
3kg |
|
DBU-5KN |
5kN |
2.0kHz |
3kg |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.02%RO |
|
Hysteresis |
0.02%RO |
|
Repeatability |
0.01%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.002%RO/℃ |
|
Temp.Effect on Output |
0.002%/℃ |
|
Cable |
Φ8mm-6wire shielded cable, length: 5m |
BUX
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Natural frequency |
Weight |
|
BUX-100N |
100N |
0.9kHz |
0.9kg |
|
BUX-200N |
200N |
1.2kHz |
0.9kg |
|
BUX-500N |
500N |
1.5kHz |
0.9kg |
|
BUX-1KN |
1kN |
2.3kHz |
0..9kg |
|
BUX-2KN |
2kN |
2.5kHz |
1.0kg |
|
BUX-5KN |
5kN |
3.1kHz |
1.0kg |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V±0.1％ |
|
Nonlinearity |
0.012%RO |
|
Hysteresis |
0.012%RO |
|
Repeatability |
0.01%RO |
|
Excitation Voltage |
20V (or less) |
|
Safe Excitation Voltage |
30V |
|
Input Resistance |
1050Ω |
|
Output Resistance |
1050Ω |
|
Compensated Temp.Range |
－10 to 50℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.0015%RO/℃ |
|
Temp.Effect on Output |
0.0015%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 5m |
WBU
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
|
WBU-10N |
10N |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-20N |
20N |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-50N |
50N |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-100N |
100N |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-200N |
200N |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-500N |
500N |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-1KN |
1kN |
118 |
43 |
24 |
32 |
20 |
27 |
20 |
72 |
12 |
22 |
44 |
8.5 |
M8 |
|
WBU-2KN |
2 kN |
155 |
53 |
28 |
42.5 |
25 |
36 |
30 |
90 |
17.5 |
32.5 |
62.5 |
13 |
M10 |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
2mV/V±1％ |
|
Nonlinearity |
0.015%RO |
|
Hysteresis |
0.015%RO |
|
Repeatability |
0.01%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.002%RO/℃ |
|
Temp.Effect on Output |
0.0015%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 5m |
WBE
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
|
WBE-50N |
50N |
107 |
40 |
25 |
30 |
25 |
30 |
15 |
60 |
10 |
17 |
44 |
6.5 |
M6 |
|
WBE-100N |
100N |
107 |
40 |
25 |
30 |
25 |
30 |
15 |
60 |
10 |
17 |
44 |
6.5 |
M6 |
|
WBE-200N |
200N |
107 |
40 |
25 |
30 |
25 |
30 |
15 |
60 |
10 |
17 |
44 |
6.5 |
M6 |
|
WBE-500N |
500N |
107 |
40 |
25 |
30 |
25 |
30 |
15 |
60 |
10 |
17 |
44 |
6.5 |
M6 |
|
WBE-1KN |
1kN |
167 |
40 |
25 |
30 |
25 |
30 |
15 |
60 |
10 |
17 |
44 |
6.5 |
M6 |
|
WBE-2KN |
2 kN |
167 |
55 |
35 |
42 |
35 |
42 |
45 |
83 |
17 |
31 |
81 |
13 |
M10 |
|
WBE-5KN |
5 kN |
167 |
55 |
35 |
42 |
35 |
42 |
45 |
83 |
17 |
31 |
81 |
13 |
M12 |
|
WBE-10KN |
10 kN |
167 |
55 |
35 |
42 |
35 |
42 |
45 |
83 |
17 |
31 |
81 |
13 |
M12 |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
3mV/V±1％ |
|
Nonlinearity |
0.05%RO |
|
Hysteresis |
0.05%RO |
|
Repeatability |
0.03%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.005%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 3m |
WBS
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
Natural frequency |
Weight |
|
WBS-50N |
50N |
107 |
25 |
29 |
23 |
48 |
25 |
15 |
60 |
8 |
6.5 |
0.30kHz |
300g |
|
WBS-100N |
100N |
107 |
25 |
29 |
23 |
48 |
25 |
15 |
60 |
8 |
6.5 |
0.46kHz |
300g |
|
WBS-200N |
200N |
107 |
25 |
29 |
23 |
48 |
25 |
15 |
60 |
8 |
6.5 |
0.70kHz |
300g |
|
WBS-500N |
500N |
107 |
25 |
29 |
23 |
48 |
25 |
15 |
60 |
8 |
6.5 |
2.2kHz |
300g |
|
WBS-1KN |
1kN |
107 |
25 |
29 |
23 |
48 |
25 |
15 |
60 |
8 |
6.5 |
3.4kHz |
300g |
|
WBS-2KN |
2kN |
167 |
35 |
39 |
33 |
82 |
35 |
45 |
83 |
15 |
13 |
4.6kHz |
700G |
Specifications
|
Safe Overload |
150％RC |
|
Rated Output |
3mV/V±1％ |
|
Nonlinearity |
0.05%RO |
|
Hysteresis |
0.05%RO |
|
Repeatability |
0.03%RO |
|
Excitation Voltage |
12V (or less) |
|
Safe Excitation Voltage |
20V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 60℃ |
|
Safe Temp.Range |
－30 to 80℃ |
|
Temp.Effect on Zero |
0.005%RO/℃ |
|
Temp.Effect on Output |
0.005%/℃ |
|
Cable |
Φ6mm-4wire shielded cable, length: 3m |
WBJ
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Deflection |
Natural frequency |
Frequency response |
Weight |
|
WBJ-02N |
200mN |
0.2mm |
91Hz |
35Hz |
19g |
|
WBJ-03N |
300mN |
0.2mm |
112Hz |
35Hz |
19g |
|
WBJ-05N |
500mN |
0.2mm |
138Hz |
35Hz |
19g |
|
WBJ-1N |
1N |
0.1mm |
263Hz |
50Hz |
19g |
|
WBJ-2N |
2N |
0.1mm |
353Hz |
50Hz |
19g |
Specifications
|
Safe Overload |
200％RC |
|
Maximum permissible overload |
300%RC |
|
Acceptable overload of stopper |
500%RC |
|
Maximum side load |
30%RC |
|
Fatigue life |
excess of 109 cycles |
|
Rated Output |
1.0mV/V±10％ |
|
Nonlinearity |
0.035%RO |
|
Hysteresis |
0.040%RO |
|
Load leaving off coefficient |
0.2%/cm |
|
Excitation Voltage |
7V (or less) |
|
Safe Excitation Voltage |
10V |
|
Input Resistance |
390Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 45℃ |
|
Safe Temp.Range |
－20 to 60℃ |
|
Temp.Effect on Zero |
0.008%RO/℃ |
|
Temp.Effect on Output |
0.005%/℃ |
|
Cable |
Φ3mm-4wire shielded cable, length: 3m(tip peeled off) |
DBJ
Appearance Dimensions
Model and Capacity / Dimension / etc. (unit: mm)
|
Model |
Capacity |
Deflection |
Natural frequency |
Weight |
|
DBJ-1N |
1N |
0.42mm |
82Hz |
125g |
|
DBJ-1.5N |
1.5N |
0.36mm |
110Hz |
125g |
|
DBJ-2N |
2N |
0.35mm |
130Hz |
125g |
|
DBJ-3N |
3N |
0.30mm |
170Hz |
125g |
|
DBJ-5N |
5N |
0.24mm |
180Hz |
125g |
|
DBJ-10N |
10N |
0.20mm |
360Hz |
125g |
|
DBJ-20N |
20N |
0.16mm |
570Hz |
125g |
Specifications
|
Safe Overload |
200％RC |
|
Maximum permissible overload |
300%RC |
|
Acceptable overload of stopper |
500%RC |
|
Maximum side load |
40%RC |
|
Rated Output |
2mV/V±5％ |
|
Nonlinearity |
0.025%RO |
|
Hysteresis |
0.025%RO |
|
Load leaving off coefficient |
0.005%/cm |
|
Excitation Voltage |
7V (or less) |
|
Safe Excitation Voltage |
10V |
|
Input Resistance |
350Ω |
|
Output Resistance |
350Ω |
|
Compensated Temp.Range |
－10 to 45℃ |
|
Safe Temp.Range |
－20 to 60℃ |
|
Temp.Effect on Zero |
0.004%RO/℃ |
|
Temp.Effect on Output |
0.003%/℃ |
|
Cable |
Φ4mm-4wire shielded cable, length: 2m(tip peeled off) |
If you are interesting this products, please download the catalog now. A sales representative will contact with you as soon as possible
© 2019 Chief SI INC. - Design By Armlet
