μ-Force
Applying micro-force steadily:
Today, it is a big issue to apply micro-force steadily on cells or micro materials in the studies of MEMS, Nanotechnology, Biotechnology, etc. Besides, while measuring the films or wafers by using probes, the force applied to the probes also influence the test results significantly. The μ-Force system, developed by Chief SI, is able to measure micro-force and apply micro-force to tiny object.
Applications: monitoring the force applied to the probe (includes four point probe), applying micro-force to MEMS components and measuring the IV-curve.
System Feature：
- Able to work commercial probe stations or four point probe stations.
- Measuring and applying micro-force steadily.
- Max resolution: 0.5mg.
- Software monitors micro-force of two channels.
| Interface | USB 2.0 | Connector type | 9-Pin D-Sub |
| Sampling rate | 800, 400, 200, 100, 40, 10 (@2 channels: 200, 100, 50, 25, 10) |
Cable | 1 m |

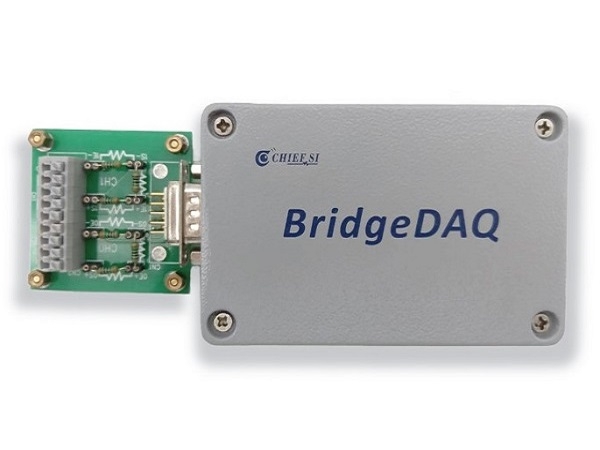

| Range | Type 1: 100 g Type 2: 20 g | Packages | u-Force sensor, Bridge DAQ, USB connector 1.8m, 9-Pin terminal block, Software. |
| Resolution | Type 1: 10 mg Type 2: 0.5 mg | Software | Displays data & curve. Save data to .CSV format. |
| Channel | 1 or 2 | Operating System | Windows XP, Win 7, Win 8, Win10 |
Dimensions
If you are interesting this products, please download the catalog now. A sales representative will contact with you as soon as possible
