FleXense_STD
Complicated measuring with easy-to-use FleXense_STD:
The FleXense_STD is a multi-purpose signal measuring and analyzing software applied to different applications such as strain, vibration, current, and temperature. With the USB or Ethernet interface and various plug and play modules, FleXense_STD is a powerful and easy-to-use tool for end users doing research and development for academic and industrial users.
System feature:
- Easy-to-use GUI.
- Various modules of different signal measuring and analyzing can be changed by the user depends on the application.
- Real-time measuring, logging and displaying with report generating tools.
- Data can be recorded directly to hard disk drive and capable of VERY long time recording.
- Cost Saving. Compared with traditional ones, FleXense_STD allows user to save up to 80% cost.

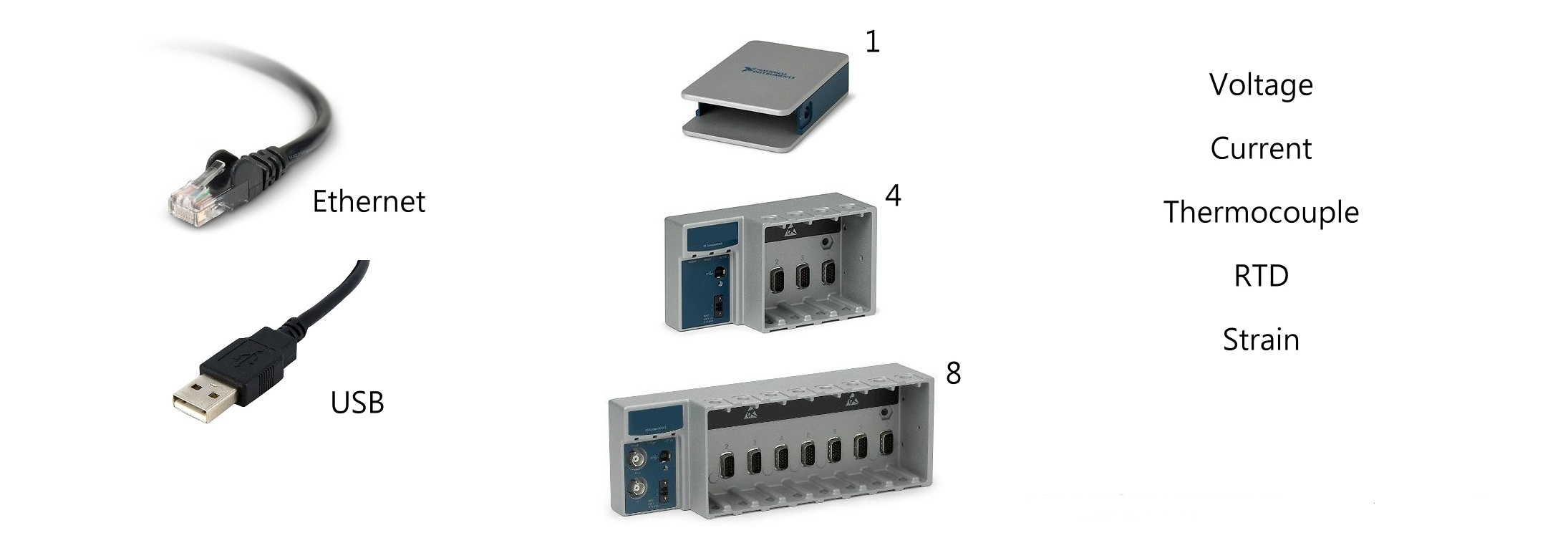

System Architecture:
| Carrier slots | 1, 4, 8 | |
| Power | Single slot: powered by usb. 4 & 8 slots : 9-35 Vdc | |
| Interface | USB 2.0 or Ethernet | |
| Signals | Voltage | ±80 mV~±60 (depends on module) |
| Current | ±20mA~±5A(depends on module) ±5A(with Current Shunt) | |
| Temperature | Thermocouple or RTD(3-wire or 4-wire) | |
| Strain | 1/4, 1/2, full bridge | |
| Vibration | IEPE accelerometer | |
| Channels | 128 Max.(depends on module) | |
| Sampling Rate | 10Hz ~ 100kHz(depends on module) | |
| Synchronize measuring | Yes (depends on module) | |
| Resolution | 12~24bit | |
| Software Function | Long time logging | Yes |
| Mass file analyzing | Yes(>500MB) | |
| Measuring method | Continuous or trigger | |
| Statistical operation | Yes | |
| Virtual channel | Yes | |
| Filter | Yes (High pass, Low pass, Band pass) | |
| Waveform-Time Chart | Yes (up to 3 Y-T Chart) | |
| Display | Meter, XY graph, Bar Chart | |
| Statistical trend analysis | Yes(Max、Min、RMS、Mean) | |
| Zoom in & out | Yes | |
| Report format | EXCEL, ASCII, HTML | |
| Real-time analysis | FFT, Power Spectrum | |
| Optional module | Force platform module Drop test module CAN Bus module | |
| Languages | English, Traditional Chinese, Simplified Chinese. | |
| Basic computer requirement | CPU: P4, RAM: 1GB, HD: 1GB, USB 2.0 | |
| Basic monitor requirement | 1280×768 resolution | |
| Operation system | Windows XP, VISTA, WIN7, WIN 8, WIN10 | |
If you are interesting this products, please download the catalog now. A sales representative will contact with you as soon as possible
