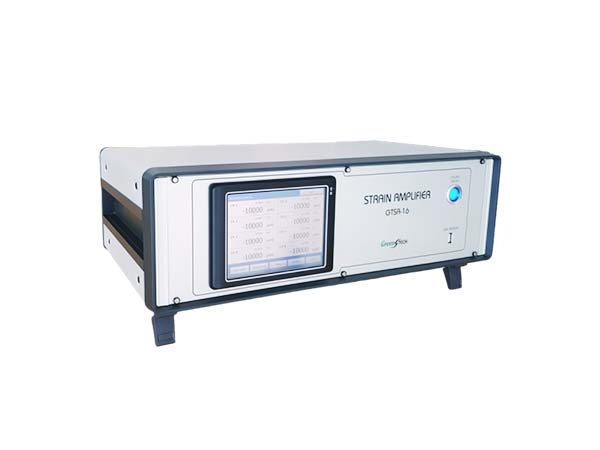

Model

GTSA-6

GTSA-16

Number of Channel

2, 4, 6 channel

2, 4, 6, 8, 10, 12, 14, 16 channel

Display

5.6 inch TFT Touchable LCD

Measure Hz

10 KHz

Analog Output Hz

10 KHz

Input Sensor

- 1Gage & 2Gage : 120Ω, 350Ω

- 4 Gage Bridge Sensor : 0.5 mV/V ~ 100 mV/V

- Potentiometer Sensor

- Voltage: 10 V

Strain Input Range

10,000, 100,000, 1,000,000 X 10^-6 strain

Low Pass Filter

10 Hz, 100 Hz, 1 KHz, 10 KHz

Bridge EXC Voltage

2V, 5V, 10V

A/D Conversion

16 Bit 10,000 times/sec

D/A Conversion

16 Bit 10,000 times/sec

Dimension

255(W)*160(H)*270(D)mm

450(W)*132(H)*280(D)mm

Power

AC 220 V, 50~60 Hz
